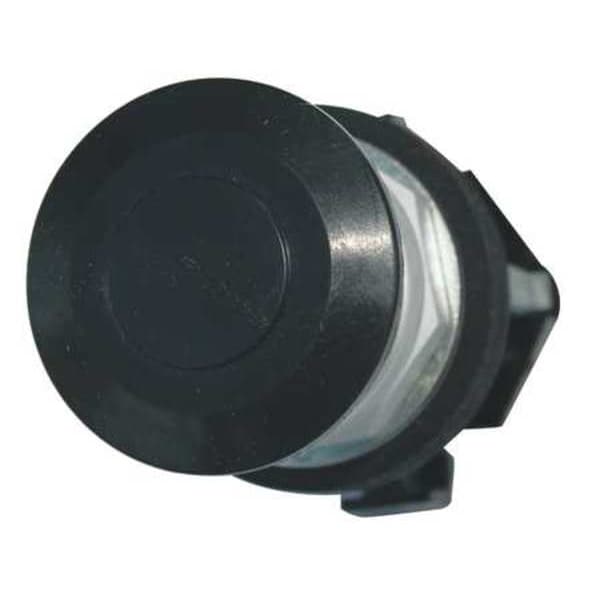

Botón pulsador no iluminado, 30 mm, 1NC/1NF, Negro
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Lamp Type | Not Applicable |
| Color | Black |
| Contact Form | 1NO/1NC |
| Legend | No Legend |
| Bezel | Anodized Aluminum |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Chrome |
| Material | metal |
| Standards | CE, CSA, UL Listed |
| Basic Material | Metal |
| IP Rating | IP66 |
| Terminal Connection | Screw Clamp |
| NEMA Contact Rating Designation | A600, P600 |
| Features | Allen-Bradley Pushbutton Panel Compatible |
| Series | HT800 |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 250 V |
| Type | Pushbutton |
| Lamp Module Type | Not Applicable |
| Product Type | Push Button Operators |
| Enclosure | NEMA 3 |
| Actuator Material | Plastic |
| Certifications | CSA Certified |
| Product Width | 2 in |
| Compliances | CE Marked |
| Actuator | Mushroom |
| Contact configuration | 1 NO-1 NC |
| Operating mode | Momentary |
| Bus material | Anodized aluminum |
| Illumination | Non-illuminated |
| Operator material | Metal |
| Product Length/Depth | 3 in |
| Product Height | 5 in |
| Actuator Color | Black |
| Product Name | Eaton HT800 pushbutton |
| Push Button Style | Mushroom Head |
| Mushroom Head Diameter | 40 mm |
| NEMA Enclosure Rating | 4, 12, 3, 4X, 1, 3R, 2 |
| Operating Temperature - Maximum | 140 deg F |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Minimum | 10 deg F |
| Overall Width | 2 in |
| Operator Illumination | Non-Illuminated |
| Overall Depth | 3 in |
| Lamp Voltage - Maximum | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Operator Voltage Rating - Maximum | 28 V |
| Head Color | Black |
| Number of Indicator Lights | 0 |
| Overall Height | 5 in |
| Package Quantity | 1 |
