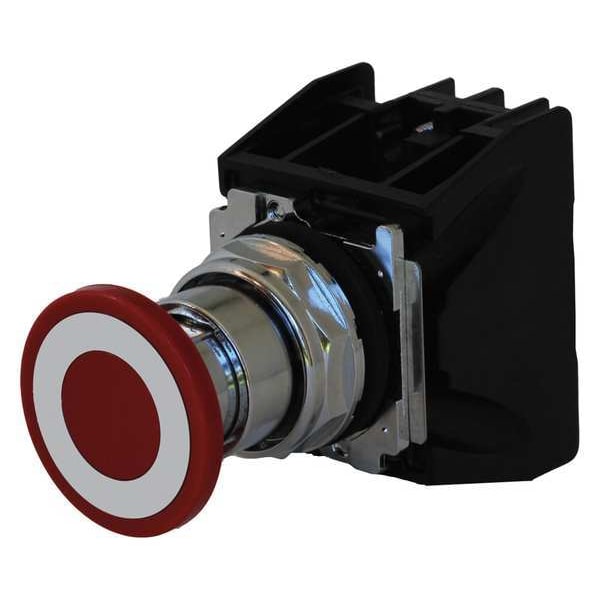

Botón de empuje no iluminado, 30 mm, 1 normal cerrado/1 normal abierto, rojo
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Lamp Type | Not Applicable |
| Contact Form | 1NO/1NC |
| Color | Red |
| Bezel | Chrome Plated Zinc Die Cast |
| Legend | No Legend |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Zinc Die Cast |
| Standards | CE, CSA, FDA 3-A, UL 1604, UL 508 |
| Material | metal |
| Terminal Connection | Screw Clamp |
| Features | Factory Sealed, Drainage Holes, Grounding Nibs |
| NEMA Contact Rating Designation | A600, P600 |
| IP Rating | IP65 |
| Basic Material | Metal |
| Rating | NEMA 4X |
| DC Contact Rating | 2.5 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Type | 30.5 mm, Class I Division 2 |
| Series | 10250T |
| Lamp Module Type | Not Applicable |
| Product Type | Push Button Operators |
| Product Height | 1 in |
| Operating mode | Pull: maintained |
| Certifications | UL 1604 |
| Illumination | Non-illuminated |
| Contact configuration | 1 NO-1 NC |
| Number of Positions | 2 |
| Bus material | Plastic |
| Product Length/Depth | 1 in |
| Actuator Color | Red |
| Actuator | Standard |
| Product Width | 1 in |
| Compliances | CE Marked |
| Product Name | Eaton 10250T pushbutton |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Maintained Action Release | Push, Pull |
| Mushroom Head Diameter | 40 mm |
| Manufacturer Warranty Length | 1 yr |
| Resistance Properties | Oil and Grease Resistant |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Panel Cutout Diameter | 30 mm |
| Operator Illumination | Non-Illuminated |
| Overall Height | 1 in |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 3R |
| Head Color | Red |
| Number of Indicator Lights | 0 |
| Overall Depth | 1 in |
| Operator Material | Metal |
| Lamp Voltage - Maximum | Not Applicable |
| Push Button Style | Mushroom Head |
| Overall Width | 1 in |
| Package Quantity | 1 |
