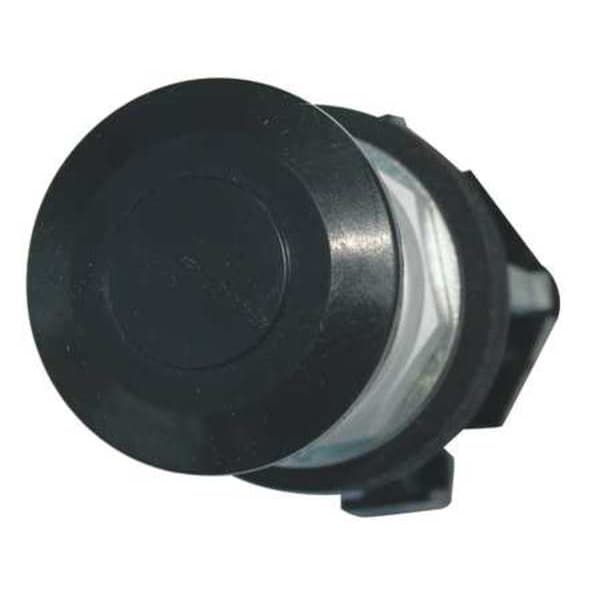

Botón de empuje no iluminado, de 30 mm, con 2 contactos normalmente abiertos y 2 contactos normalmente cerrados, en color negro.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Lamp Type | Not Applicable |
| Contact Form | 2NO/2NC |
| Color | Black |
| Bezel | Anodized Aluminum |
| Legend | No Legend |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Mushroom Head Push Button |
| Bezel Material | Chrome |
| Basic Material | Metal |
| Material | metal |
| IP Rating | IP66 |
| Terminal Connection | Screw Clamp |
| Standards | CE, CSA, UL Listed |
| NEMA Contact Rating Designation | A600, P600 |
| Features | Allen-Bradley Pushbutton Panel Compatible |
| DC Contact Rating | 5 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Type | Pushbutton |
| Series | HT800 |
| Lamp Module Type | Not Applicable |
| Product Type | Push Button Operators |
| Illumination | Non-illuminated |
| Certifications | UL Listed |
| Contact configuration | 2 NO-2 NC |
| Actuator | Mushroom |
| Product Length/Depth | 3 in |
| Product Width | 2 in |
| Enclosure | NEMA 12 |
| Bus material | Anodized aluminum |
| Actuator Color | Black |
| Operator material | Metal |
| Actuator Material | Plastic |
| Compliances | CE Marked |
| Product Height | 5 in |
| Operating mode | Momentary |
| Product Name | Eaton HT800 pushbutton |
| Push Button Style | Mushroom Head |
| Overall Width | 2 in |
| Head Color | Black |
| Mushroom Head Diameter | 40 mm |
| Panel Cutout Diameter | 30 mm |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Operating Temperature - Minimum | 10 deg F |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| NEMA Enclosure Rating | 4, 12, 3, 4X, 1, 3R, 2 |
| Overall Height | 5 in |
| Number of Indicator Lights | 0 |
| Operator Illumination | Non-Illuminated |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Depth | 3 in |
| Operating Temperature - Maximum | 140 deg F |
| Manufacturer Warranty Length | 1 yr |
| Operator Voltage Rating - Maximum | 28 V |
| Package Quantity | 1 |
