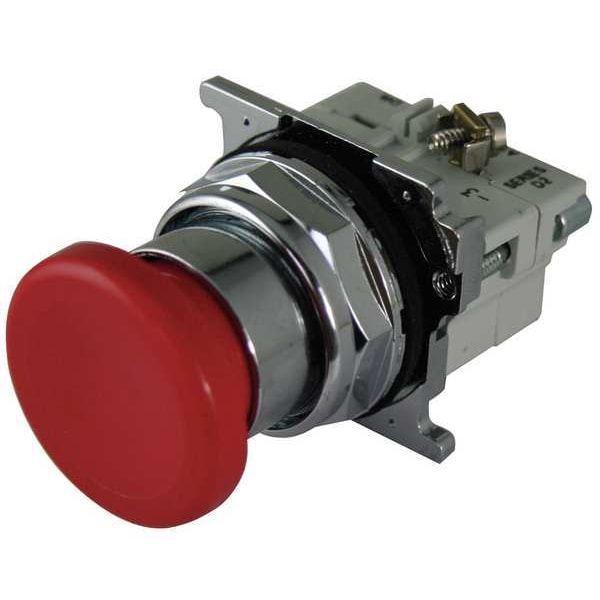

Botón pulsador no iluminado de 30mm de metal.
| Item | Mushroom Head Push Button |
|---|---|
| Size | 30 mm |
| Legend | No Legend |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Color | Red |
| Material | metal |
| Action | Momentary |
| Standards | CE, CSA, UL Listed |
| IP Rating | IP65 |
| Contact Rating | 10A @ 600V AC |
| Type of Operator | 40mm Mushroom Head |
| Basic Material | Metal |
| Head Material | Metal |
| Number of Operators | 1 |
| Contact Form | 2NC |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Bezel | Chrome Plated Zinc Die Cast |
| Terminal Connection | Screw Clamp |
| Product Type | Push Button Operators |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Lamp Type | Not Applicable |
| Bus material | Zinc die cast |
| Product Height | 1 in |
| Product Width | 1 in |
| Illumination | Non-illuminated |
| Product Length/Depth | 1 in |
| Product Diameter | 2-1/2 in |
| Compliances | CE Marked |
| Rating | NEMA 13 |
| Contact configuration | 2 NC |
| Operating Mode | Momentary |
| Degree of protection | NEMA 4 |
| Certifications | CSA Certified |
| Actuator material | Plastic |
| Series | 10250T |
| Actuator color | Red |
| Actuator | Mushroom |
| Product Name | Eaton 10250T pushbutton |
| Mushroom Head Diameter | 40 mm |
| Head Color | Red |
| Panel Cutout Diameter | 30 mm |
| Operating Temperature - Minimum | 1 deg F |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 1 yr |
| Operator Material | Metal |
| Number of Indicator Lights | 0 |
| DC Contact Rating | 5 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Lamp Voltage - Maximum | Not Applicable |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Overall Height | 1 in |
| Push Button Style | Mushroom Head |
| Overall Width | 1 in |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Overall Depth | 1 in |
| Operator Voltage Rating - Maximum | 120 V AC/DC |
| Operating Temperature - Maximum | 150 deg F |
| Package Quantity | 1 |
