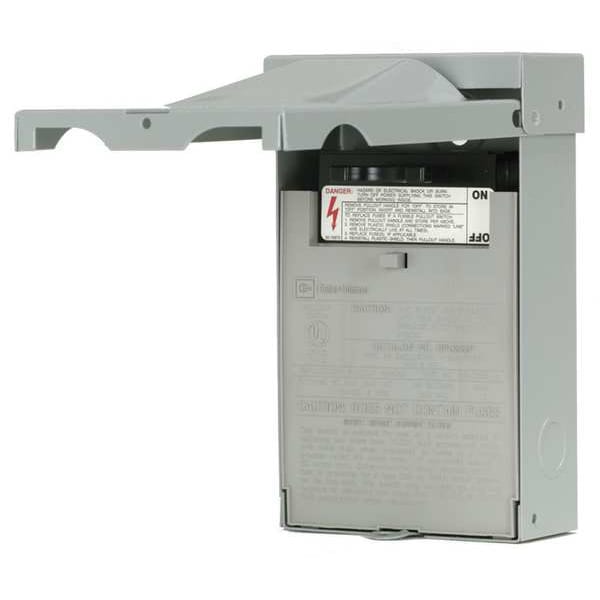

Interruptor de desconexión para aire acondicionado no fusible, 240V AC, NEMA 3R
| Item | Air Conditioning Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Amps | 60 |
| Voltage | 240 V AC |
| Phase | 1 |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 2 |
| Material | Polycarbonate |
| Number of Poles | 2 |
| Contact Form | DPST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Polycarbonate |
| Height | 8-45/64 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 5 in |
| Receptacle Type | 20AGFI |
| Short Circuit Protection | None |
| Max. HP @ 240V | 10 HP |
| Depth | 3-1/2 in |
| Standards | CSA Certified, UL Listed |
| Includes | 20A GFI Receptacle |
| Features | 1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield |
| Switch Design | Pull-out |
| NEMA Enclosure Rating | 3 R |
| Horsepower @ 120V AC | 3 HP |
| Wire Size | 2 AWG, 3 AWG, 4 AWG, 5 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG, 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG |
| For Fuse Class | Not Applicable |
| Current Rating | 60 A |
| For Environment | Indoor, Outdoor |
| Housing Material | Polycarbonate |
| Horsepower @ 240V AC | 10 HP |
| Package Quantity | 1 |
