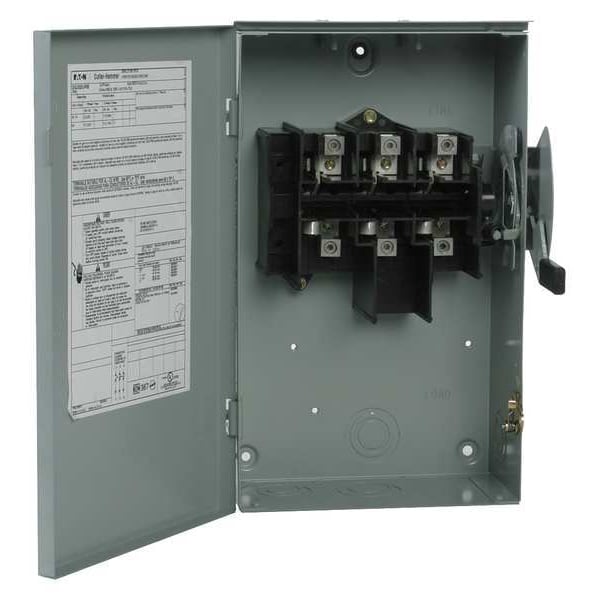

Interruptor de seguridad no fusible, de servicio general, 240V CA, 3PST, 100 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 30 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Width | 9.1 in |
| Depth | 7.4 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 19.2 in |
| Type | Non-fusible, single-throw |
| Current Rating | 100 A |
| Horsepower @ 600V AC | Not Rated |
| NEMA Enclosure Rating | 3R |
| Environment | Indoor, Outdoor |
| For Fuse Class | Not Applicable |
| Housing Material | Steel |
| Horsepower @ 240V AC | 30 HP |
| Product Height | 19-1/4 in |
| Amperage Rating | 100 A |
| Product Width | 9.13 in |
| Fuse Configuration | Non-fusible |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Product Name | Eaton general duty safety switch |
| Voltage Rating | 240 V |
| Enclosure | NEMA 3R |
| Certifications | UL Listed |
| Product Length/Depth | 7.38 in |
| Package Quantity | 1 |
