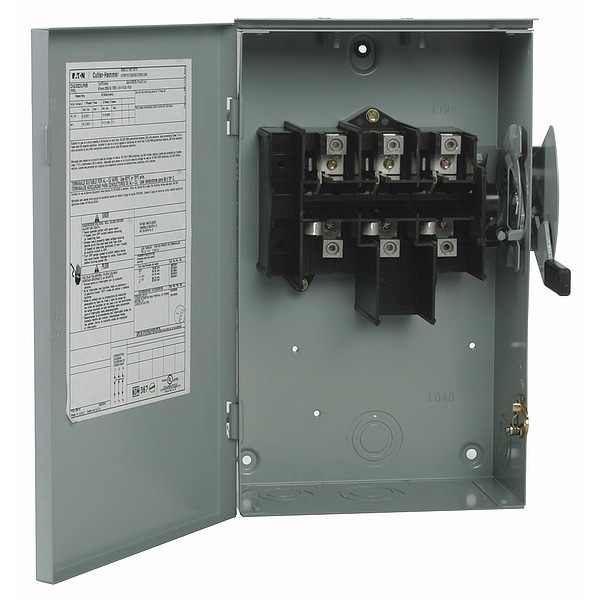

Interruptor de seguridad no fusible, uso general, 240V AC, 3PST, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Fusible / Nonfusible | Nonfusible |
| Depth | 6.8 in |
| Width | 6.3 in |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Height | 10.6 in |
| Type | Non-fusible, single-throw |
| NEMA Enclosure Rating | 1 |
| Housing Material | Steel |
| Environment | Indoor |
| Horsepower @ 240V AC | 7.5 HP |
| Horsepower @ 600V AC | Not Rated |
| Current Rating | 30 A |
| For Fuse Class | Not Applicable |
| Product Width | 6.38 in |
| Certifications | UL Listed |
| Amperage Rating | 30 A |
| Fuse Configuration | Non-fusible |
| Voltage Rating | 240 V |
| Product Length/Depth | 6.88 in |
| Product Name | Eaton general duty safety switch |
| Product Height | 10.69 in |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Enclosure | NEMA 1 |
| Package Quantity | 1 |
