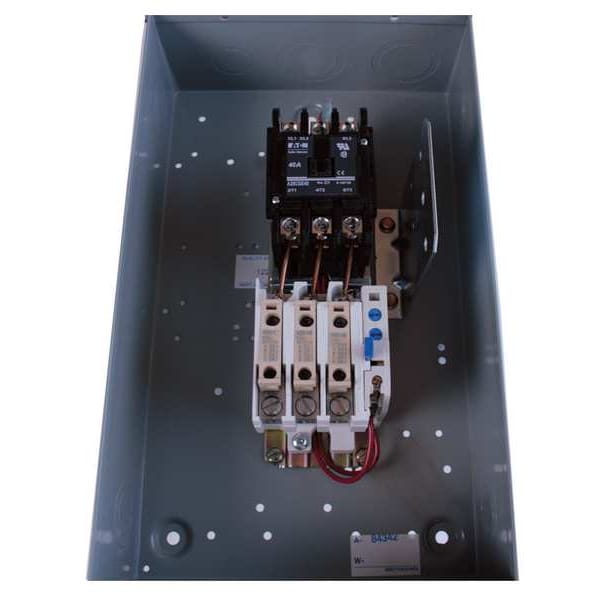

Calificación NEMA 1 no reversible, 120V CA
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Type | Non-reversing |
| Coil Volts | 120 V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 15 HP |
| HP @ 3 Phase - 575V | 30 HP |
| Action | Nonreversing |
| Amps AC | 50 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 30 HP |
| Depth | 6.67 in |
| Width | 7.64 in |
| Height | 13.27 in |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Product Length/Depth | 7.62 in |
| Control Characteristics | Common control |
| Amperage Rating | 50 A |
| Inductive Full Load | 50 A IFL |
| Product Width | 6 in |
| Coil | 110-120 Vac, 50/60 Hz |
| Certifications | CSA Certified, UL Recognized |
| Product Name | Eaton definite purpose starter |
| Product Height | 12.6 in |
| Model | Starter |
| Terminals | Box lugs |
| Phase | Three |
| Enclosure | NEMA type 1 enclosed |
| Overall Depth | 7.62 in |
| NEMA Enclosure Rating | 1 |
| Maximum Operating Temperature | 149 Degrees F |
| Series | A25 |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Mounting Hole Distance - Height | 10.39 in |
| Locked Rotor Load | 200 A @ 575V AC, 250 A @ 460V AC, 300 A @ 115V AC, 300 A @ 230V AC |
| Terminal Connection Type | Screw Terminals |
| Overall Width | 6 in |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Overall Height | 12.6 in |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Coil Voltage | 110-120V AC |
| IP Rating | IP20 |
| Mounting Hole Distance - Width | 6 in |
| Frequency | 50/60 Hz |
| Current AC | 50 A |
| Minimum Operating Temperature | -13 Degrees F |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Package Quantity | 1 |
