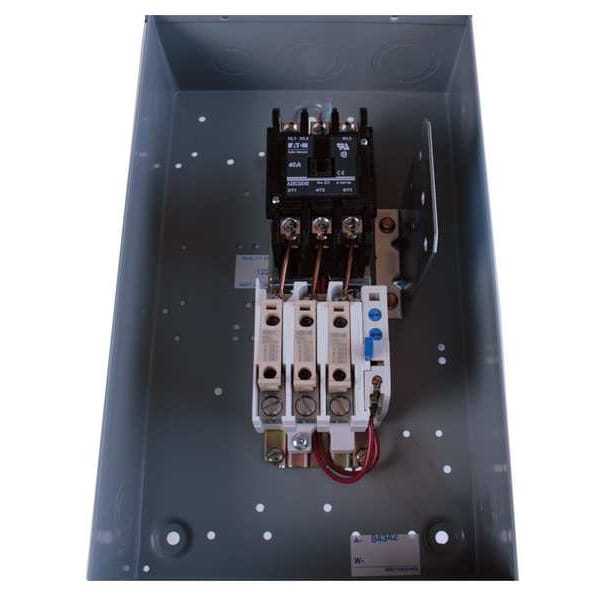

Calificación NEMA 1 de no reverencia, 208 a 240V CA.
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Type | Non-reversing |
| Coil Volts | 208 to 240V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 7.5 HP |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 10 HP |
| Action | Nonreversing |
| Amps AC | 25 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| HP @ 1 Phase - 120V | 2 hp |
| Depth | 5.81 in |
| Standards | CSA, UL Listed |
| Height | 10.17 in |
| Width | 5.63 in |
| Hz | 50/60 |
| Enclosure | NEMA type 1 enclosed |
| Phase | Three |
| Control Characteristics | Common control |
| Terminals | Screw, pressure plate |
| Product Height | 7.38 in |
| Coil | 208-240 Vac, 50/60 Hz |
| Model | Starter |
| Inductive Full Load | 25 A IFL |
| Product Name | Eaton definite purpose starter |
| Amperage Rating | 25 A |
| Certifications | UL Recognized; CSA Certified |
| Minimum Operating Temperature | -13 Degrees F |
| Mounting Hole Distance - Height | 9 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Overall Depth | 5.81 in |
| Overall Height | 7.38 in |
| Current AC | 25 A |
| Frequency | 50/60 Hz |
| Overload Protection Type | Thermal |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Distance - Width | 4-1/2 in |
| Locked Rotor Load | 100 A @ 575V AC, 125 A @ 460V AC, 150 A @ 115V AC, 150 A @ 230V AC |
| Overall Width | 5.63 in |
| Coil Voltage | 208-240V AC |
| Reversing Capability | Non-Reversing |
| Series | A25 |
| Maximum Voltage Rating | 575 V AC |
| Maximum Operating Temperature | 149 Degrees F |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| IP Rating | IP20 |
| NEMA Enclosure Rating | 1 |
| Package Quantity | 1 |
