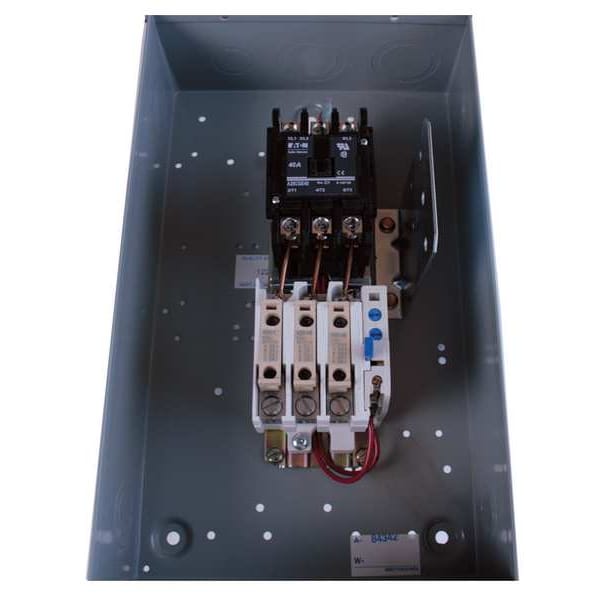

No reversible 1 Clasificación NEMA, 480V CA.
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Coil Volts | 480 V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 20 HP |
| Action | Nonreversing |
| HP @ 3 Phase - 575V | 40 HP |
| Amps AC | 60 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 40 HP |
| Standards | CSA, cURus, IEC/EN 60947-1, UL Listed, UL 60947-4-1 |
| Height | 13.27 in |
| Depth | 6.67 in |
| Width | 7.64 in |
| Hz | 50/60 |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Overall Depth | 7.16 in |
| Mounting Hole Distance - Width | 6 in |
| Overload Protection Type | Thermal |
| Frequency | 50/60 Hz |
| NEMA Enclosure Rating | 1 |
| Phase | Three |
| Overall Width | 7.62 in |
| Reversing Capability | Non-Reversing |
| Overall Height | 13.31 in |
| Terminal Connection Type | Screw Terminals |
| Maximum Operating Temperature | 149 Degrees F |
| Mounting Hole Distance - Height | 10.39 in |
| Coil Voltage | 440-480V AC |
| IP Rating | IP20 |
| Current AC | 60 A |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Locked Rotor Load | 240 A @ 575V AC, 300 A @ 460V AC, 360 A @ 115V AC, 360 A @ 230V AC |
| Series | A25 |
| Minimum Operating Temperature | -13 Degrees F |
| Package Quantity | 1 |
