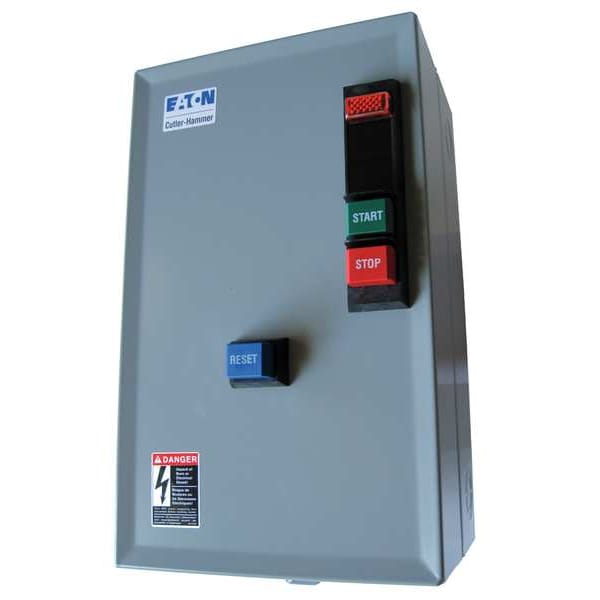

Arrancador magnético IEC no reversible, 1NO.
| Item | IEC Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 9 to 45 |
| Coil Volts | 480 V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 10 HP |
| HP @ 3 Phase - 575V | 30 HP |
| HP @ 3 Phase - 208V | 10 HP |
| Action | Nonreversing |
| HP @ 1 Phase - 240V | 5 HP |
| Amps AC | 32 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 20 HP |
| HP @ 1 Phase - 120V | 2 HP |
| Standards | cUL Listed, UL Listed |
| Hz | 50/60 |
| Depth | 10.1 in |
| Features | Start/Stop Push Button and Red Run Pilot Light |
| Height | 8-1/2 in |
| Width | 14.9 in |
| Includes | Start/Stop Push Button and Red Run Pilot Light |
| Thermal Unit Code | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Auxiliary Contact Module Capacity | 4 |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Maximum Voltage Rating | 690 V AC |
| Starter Style | IEC |
| Overall Width | 9 in |
| Trip Class | 10A/10/20/30 |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Operator | Push Button |
| IP Rating | IP23 |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Coil Voltage | 480 V AC |
| Overall Depth | 14 in |
| Overall Height | 8-1/2 in |
| Minimum Overload Relay Current Setting | 9 A |
| Maximum Overload Relay Current Setting | 45 A |
| Current AC | 32 A |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Frequency | 50/60 Hz |
| Includes Pilot Light | Yes |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Hazardous Location Specification | Not Applicable |
| Series | XT |
| Operator Function | Start, Stop |
| Number of Auxillary Contacts | 2 |
| Frame Size | D |
| Overload Protection Type | Electronic |
| Mounting Style | Surface |
| Package Quantity | 1 |
