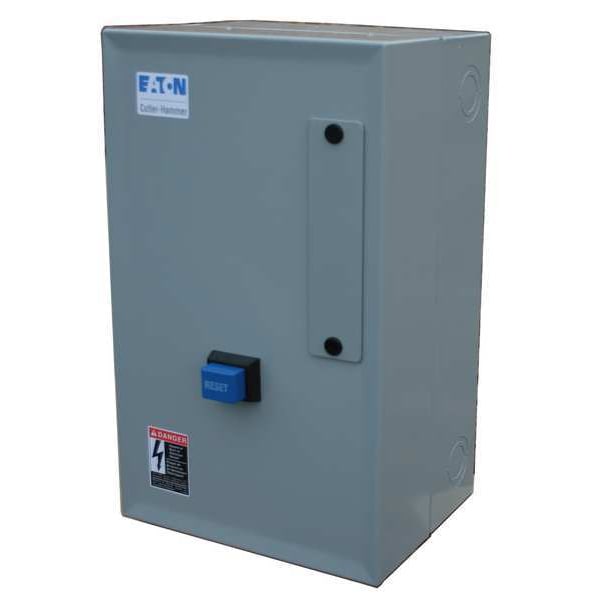

Arrancador magnético NEMA sin inversión de giro, clasificación NEMA 1, 208V CA, 3 polos, 1NC/1NO.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 9 to 45 A |
| Coil Volts | 208V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 15 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 25 HP |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 5 hp |
| Includes | Solid State Overload Relay |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 5.84 in |
| Features | Solid State Overload Relay |
| Height | 12.6 in |
| HP @ 3 Phase - 208V | 10 HP |
| Standards | UL E1491 |
| Width | 7.73 in |
| Hz | 60 |
| Thermal Unit Code | Not Applicable |
| Weight | 11.6 lb |
| Includes Auxiliary Contacts | Yes |
| Current AC | 45 A |
| Overall Height | 8-1/2 in |
| Mounting Style | Surface |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Coil Voltage | 208V AC |
| Minimum Overload Relay Current Setting | 9 A |
| Overall Depth | 14.9 in |
| NEMA Enclosure Rating | 1 |
| Overall Width | 10.1 in |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Auxiliary Contact Module Capacity | 4 |
| Phase | Three |
| Trip Class | 10A/10/20/30 |
| Frequency | 60 Hz |
| Overload Protection Type | Electronic |
| Maximum Overload Relay Current Setting | 45 A |
| Hazardous Location Specification | Not Applicable |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Series | Freedom |
| Package Quantity | 1 |
