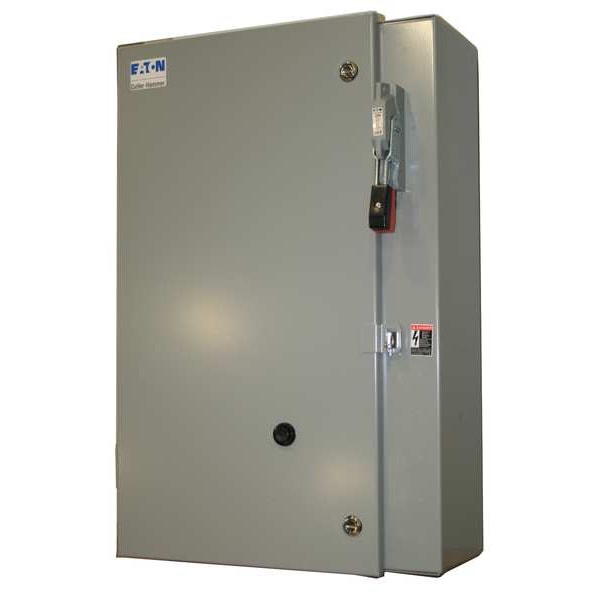

Arrancador magnético NEMA no reversor, 1 calificación NEMA, 240V CA, 3 polos, 1NC/1NO.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 30 to 150 A |
| Coil Volts | 240V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Height | 25.99 in |
| Features | Solid State Overload Relay |
| Depth | 8.03 in |
| Includes | Solid State Overload Relay |
| HP @ 3 Phase - 575V | 100 hp |
| Hz | 50/60 |
| Standards | BS, CSA, cUL Listed, IEC, IEC 947 Type 2, OSHPD (OSP-0015-10), UL Listed, VDE |
| Width | 11.66 in |
| HP @ 3 Phase - 208V | 40 HP |
| Thermal Unit Code | Not Applicable |
| Reversing Capability | Non-Reversing |
| Trip Class | 10A/10/20/30 |
| Number of Auxillary Contacts | 2 |
| Coil Voltage | 220/240V AC |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Current AC | 135 A |
| Mounting Postion | Vertical, Horizontal |
| Overall Depth | 8.03 in |
| IP Rating | IP20 |
| Horsepower @ Single Phase - 240V AC | Not Rated |
| Frequency | 50/60 Hz |
| Overall Width | 11.66 in |
| Starter Style | NEMA |
| Phase | Three |
| Mounting Style | Surface |
| Maximum Overload Relay Current Setting | 140 A |
| Overload Protection Type | Electronic |
| Includes Auxiliary Contacts | Yes |
| Hazardous Location Specification | Not Applicable |
| Overall Height | 25.99 in |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Minimum Overload Relay Current Setting | 28 A |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Series | Freedom |
| Status Indicator | LED Indicator |
| Auxiliary Contact Module Capacity | 4 |
| Package Quantity | 1 |
