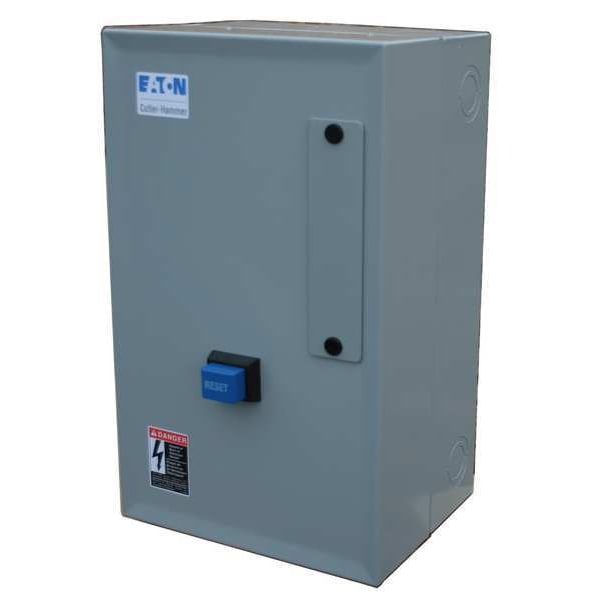

Arrancador magnético NEMA no reversor, clasificación NEMA 1, 240V CA, 3 polos, 1NC/1NO.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 0.33 to 1.65 A |
| Coil Volts | 240V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 1.5 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 9 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 2 HP |
| HP @ 1 Phase - 120V | 1/3 hp |
| Standards | ABS Type Approved, BS, CSA, cUL Listed, IEC, OSHPD (OSP-0015-10), UL Listed, VDE |
| Hz | 50/60 |
| Height | 12.6 in |
| HP @ 3 Phase - 575V | 3 hp |
| HP @ 1 Phase - 230V | 1 hp |
| Width | 7.73 in |
| Features | Solid State Overload Relay |
| HP @ 3 Phase - 208V | 1.5 HP |
| Includes | Solid State Overload Relay |
| Depth | 5.84 in |
| Thermal Unit Code | Not Applicable |
| Weight | 11.6 lb |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Overall Depth | 14.9 in |
| Number of Auxillary Contacts | 2 |
| Starter Style | NEMA |
| Minimum Overload Relay Current Setting | 0.33 A |
| Maximum Overload Relay Current Setting | 1.65 A |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Horsepower @ Three Phase - 600V AC | 3 HP |
| Horsepower @ Single Phase - 120V AC | 0.3333 HP |
| Series | Freedom |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 10.1 in |
| Overall Height | 8-1/2 in |
| Maximum Voltage Rating | 600 V AC |
| Coil Voltage | 220/240V AC |
| Overload Protection Type | Electronic |
| Reversing Capability | Non-Reversing |
| Current AC | 9 A |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| IP Rating | IP20 |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
