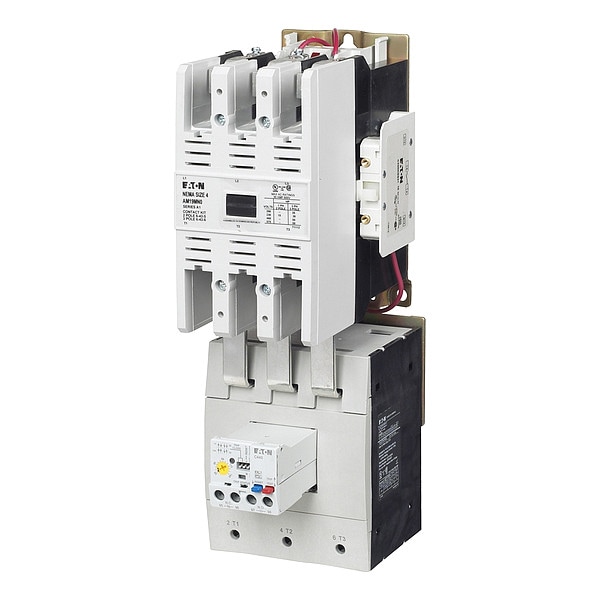

Arrancador magnético NEMA no reversible, sin cubierta de clasificación NEMA, 120V CA, 3 polos, 1 contactos normalmente abiertos.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 30 to 150 A |
| Type | Starter |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Includes | Auxiliary Contact, Contactor, Electronic Overload |
| Depth | 7 in |
| Standards | UL Listed |
| Height | 17 in |
| HP @ 3 Phase - 575V | 100 hp |
| Hz | 50/60 |
| Width | 7.1 in |
| Features | Auxiliary Contact, Contactor, Electronic Overload |
| HP @ 3 Phase - 208V | 40 HP |
| Accessory Group | Freedom |
| Thermal Unit Code | Not Applicable |
| Weight | 27 lb |
| Product Name | Eaton Freedom NEMA motor control starter |
| Amperage Rating | 135 A |
| Relay | C440 electronic |
| Nema Frame Size | NEMA Size 4 |
| Product Width | 13 in |
| Certifications | UL Listed |
| Coil Voltage | 110/120V AC |
| Product Length/Depth | 22 in |
| Product Height | 9 in |
| Overload Relay | C440 electronic |
| Size | NEMA size 4 |
| Configuration | Non-reversing |
| Overload Protection Type | Electronic |
| Mounting Style | Surface |
| Hazardous Location Specification | Not Applicable |
| Overall Width | 13 in |
| Operator Function | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Current AC | 135 A |
| Includes Auxiliary Contacts | Yes |
| Auxiliary Contact Module Capacity | 6 |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 600 V AC |
| Mounting Postion | Horizontal |
| Maximum Overload Relay Current Setting | 140 A |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Operator | None |
| Horsepower @ Single Phase - 240V AC | Not Rated |
| Series | Freedom |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Minimum Overload Relay Current Setting | 28 A |
| Overall Depth | 22 in |
| Frequency | 50/60 Hz |
| Phase | Three |
| Starter Style | NEMA |
| Overall Height | 9 in |
| Trip Class | 10A/10/20/30 |
| Frame Size | S4 |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Package Quantity | 1 |
