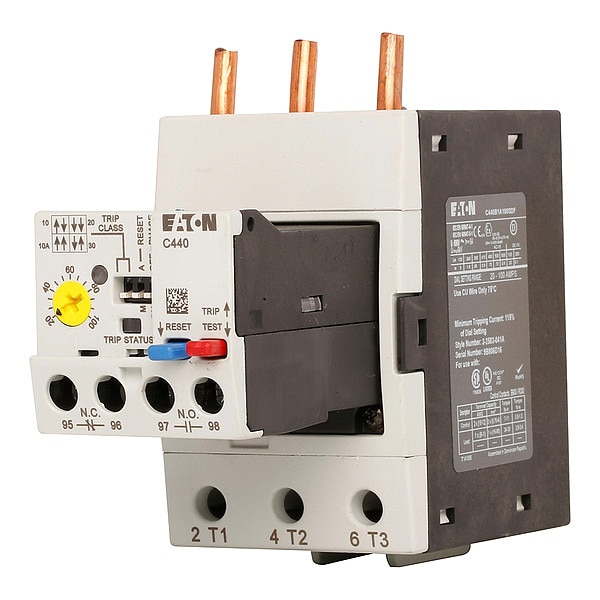

Relé de sobrecarga, NEMA, eléctrico, automático/manual.
| Item | Overload Relay |
|---|---|
| NEMA Size | 2 |
| Number of Poles | 3 |
| Standards | CE, CSA, UL Listed |
| Trip Class | 10/20/30 |
| Maximum Overload Relay Current Setting | 45 A |
| Overall Height | 6-1/2 in |
| Relay Style | NEMA |
| Number of Required Thermals | Not Applicable |
| Body Height | 6-1/2 in |
| Frame Size | Not Applicable |
| IP Rating | IP20 |
| Overload Protection Type | Electronic |
| Mounting Style | Direct To Contactor |
| Includes Thermal Units | Not Applicable |
| Reset Type | Manual, Auto |
| Body Depth | 7-1/2 in |
| Minimum Overload Relay Current Setting | 9 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Voltage Rating | 690 V AC |
| Compatible with Series | C25 Definite Purpose, Freedom |
| Body Width | 3 in |
| Auxiliary Contact Form | 2NO/2NC |
| Phase | Three |
| Size | Freedom Size 2 |
| Special Features | Standard |
| Certifications | UL Listed; CSA Certified |
| Rated Short-Time Withstand Current (Icw) | Auto; Manual |
| Trip Type | 30, class 10,20, Selectable 10 A |
| Compliances | CE Marked |
| Overload Range | 9-45A |
| Product Name | Eaton C440 electronic overload relay |
| Package Quantity | 1 |
