Relevador de sobrecarga, NEMA, Eléctrico, Automático/Manual.
| Item | Overload Relay |
|---|---|
| NEMA Size | 0, 0 |
| Number of Poles | 3 |
| Standards | CE, CSA, UL Listed |
| Trip Class | 10/20/30 |
| Overload Protection Type | Electronic |
| Frame Size | Not Applicable |
| Maximum Voltage Rating | 690 V AC |
| Compatible with Series | C25 Definite Purpose, Freedom |
| Number of Required Thermals | Not Applicable |
| Body Depth | 4.32 in |
| Relay Style | NEMA |
| Includes Thermal Units | Not Applicable |
| Overall Height | 3.8 in |
| Reset Type | Manual, Auto |
| Auxiliary Contact Form | 2NO/2NC |
| Mounting Style | Separately Mounted |
| Minimum Overload Relay Current Setting | 1.65 A |
| Body Height | 3.8 in |
| Maximum Overload Relay Current Setting | 33 A |
| Body Width | 1.8 in |
| IP Rating | IP20 |
| Terminal Connection Type | Screw Clamp Terminals |
| Phase | Three |
| Rated Short-Time Withstand Current (Icw) | Manual; Auto |
| Special Features | Standard |
| Compliances | CE Marked |

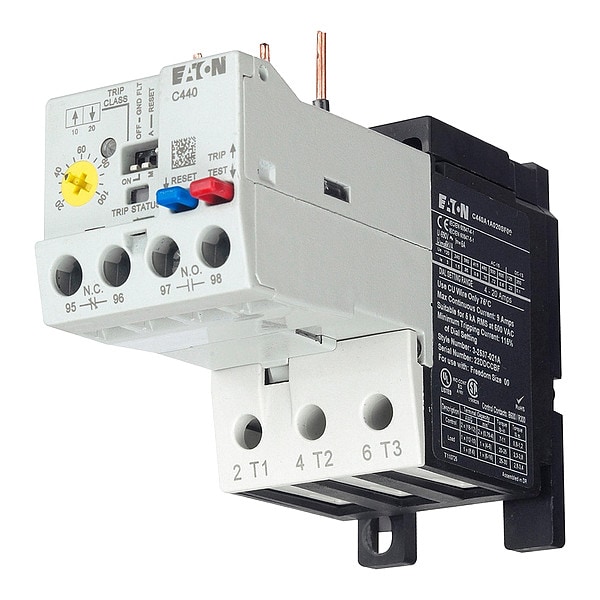

| Product Name | Eaton C440 electronic overload relay |
| Overload Range | .33-1.65A |
| Trip Type | 30, class 10,20, Selectable 10 A |
| Certifications | UL Listed, CSA Certified |
| Package Quantity | 1 |
