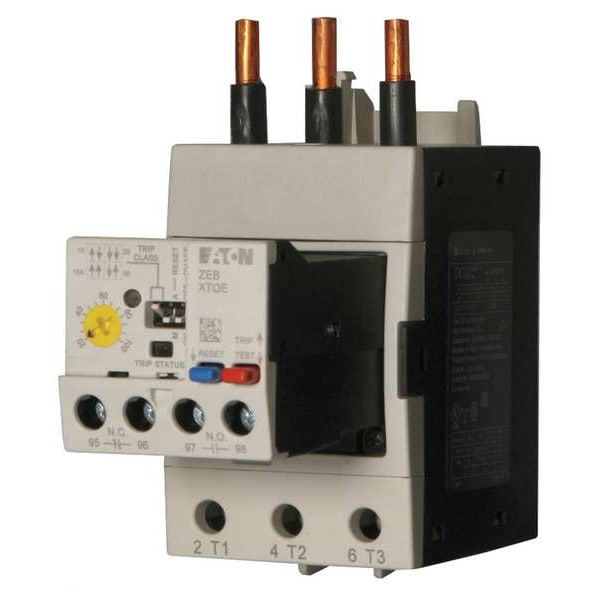

Relevador de sobrecarga, 4 a 20A, Clase 10/20/30, 3 polos.
| Item | Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Current Range | 4 to 20 A |
| Use With - Contactors and Starters | Mfr. Series XTCE Contactors |
| Overload Relay Current Range | 4 to 20 A |
| NEMA Size | Not Applicable |
| Trip Class - Overload | 10, 20, 30, 5 |
| Width | 2-1/4 in |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Frame B |
| Height | 3-1/2 in |
| Sensing Method | Electronic |
| Reset Type - Relay | Manual, Auto |
| Depth | 4-1/2 in |
| Trip Class | 10/20 |
| Separate Mounting | No |
| Overall Height - Relay | 4.32 in |
| Features | Optional Communications Available, Solid State Overload Relay, Wide Adjustment Range |
| Body Depth - Relay | 4-1/2 in |
| For Use With | 7 to 15A Contactors |
| Standards | ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Body Height - Relay | 3-1/2 in |
| Body Width - Relay | 2-1/4 in |
| Starter Type | IEC |
| Type | Electronic overload relay |
| Contact configuration | NO, NC |
| Mounting method | Direct |
| Product Width | 1.42 in |
| Overload range | 4 to 20 A |
| Compliances | ATEX Compliant |
| Product Height | 4.33 in |
| Product Length/Depth | 1.77 in |
| Certifications | EN 60947 |
| Trip type | Ground fault with selectable class 10, 20 |
| Frame size | B |
| Product Name | Eaton C440 electronic overload relay |
| Includes Mounting Hardware | Not Applicable |
| Includes Thermal Units | Not Applicable |
| Maximum Overload Relay Current Setting | 20 A |
| IP Rating | IP20 |
| Reset Type | Manual, Auto |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Operating Temperature | 122 deg F |
| Body Height | 3-1/2 in |
| Body Depth | 2.2 in |
| Phase | Three |
| Compatible with Series | XT Mini Contactors |
| Minimum Operating Temperature | -13 deg F |
| Mounting Style | Direct To Contactor |
| Minimum Overload Relay Current Setting | 4 A |
| Body Width | 1.77 in |
| Relay Style | IEC |
| Number of Required Thermals | Not Applicable |
| Overall Height | 4.33 in |
| Overload Protection Type | Electronic |
| Package Quantity | 1 |
