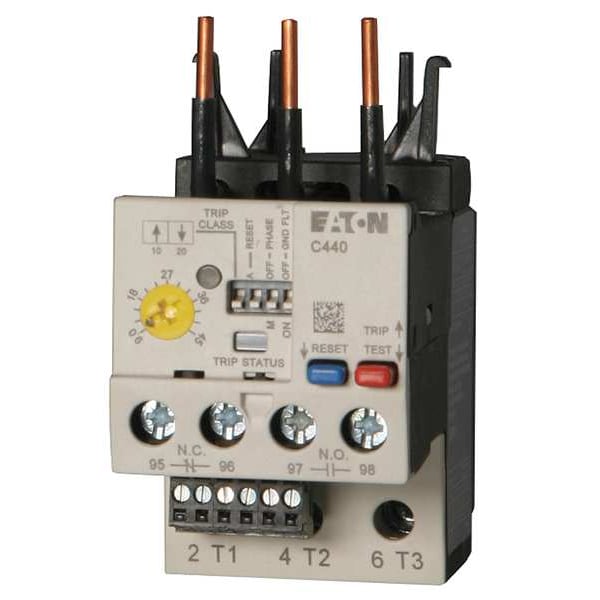

Sobrecarga de confianza, 0.33 a 1.65 A, Electrónico, 3P
| Item - Relay | IEC Style Overload Relay |
|---|---|
| Item | Overload Relay |
| Use With - Contactors and Starters | Mfr. Series XTCE Contactors |
| Current Range | 0.33 to 1.65 A |
| Overload Relay Current Range | 0.33 to 1.65 A |
| NEMA Size | Not Applicable |
| Width | 2-1/4 in |
| Trip Class - Overload | 10, 20, 30, 5 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Frame C |
| Reset Type - Relay | Manual, Auto |
| Sensing Method | Electronic |
| Height | 3-1/2 in |
| Depth | 4-1/2 in |
| Standards | ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Body Height - Relay | 3-1/2 in |
| Separate Mounting | No |
| Body Width - Relay | 2-1/4 in |
| Features | Optional Communications Available, Solid State Overload Relay, Wide Adjustment Range |
| Overall Height - Relay | 4.32 in |
| For Use With | 18 to 32A Contactors |
| Trip Class | 10/20/30 |
| Body Depth - Relay | 4-1/2 in |
| Starter Type | IEC |
| Type | Electronic overload relay |
| Mounting method | Direct |
| Product Width | 1.42 in |
| Frame size | C |
| Product Length/Depth | 1.77 in |
| Overload range | 0.33 to 1.65 A |
| Contact configuration | NO, NC |
| Trip type | 30, Selectable 10 A, class 10,20 |
| Certifications | CSA Certified |
| Product Height | 4.33 in |
| Compliances | ATEX Compliant;CE Marked |
| Product Name | Eaton C440 electronic overload relay |
| Body Height | 3-1/2 in |
| Includes Thermal Units | Not Applicable |
| Maximum Overload Relay Current Setting | 1.65 A |
| Mounting Style | Direct To Contactor |
| Number of Required Thermals | Not Applicable |
| Reset Type | Manual, Auto |
| Compatible with Series | XT Mini Contactors |
| IP Rating | IP20 |
| Includes Mounting Hardware | Not Applicable |
| Relay Style | IEC |
| Body Width | 1.8 in |
| Auxiliary Contact Form | 1NO/1NC |
| Body Depth | 2.2 in |
| Minimum Operating Temperature | -13 deg F |
| Minimum Overload Relay Current Setting | 0.33 A |
| Overload Protection Type | Electronic |
| Phase | Three |
| Overall Height | 4.33 in |
| Maximum Operating Temperature | 122 deg F |
| Package Quantity | 1 |
