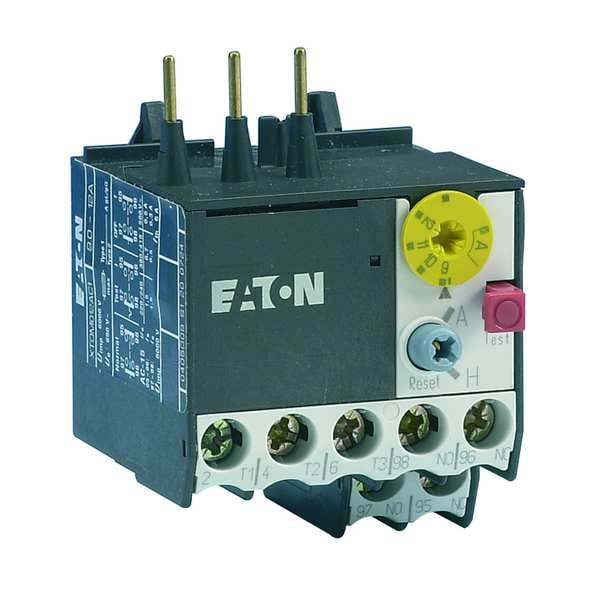

Sobrecarga de retardo, 9 a 12A, Clase 10, Bimetálico.
| Item | Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Current Range | 9 to 12 A |
| Use With - Contactors and Starters | Mfr. Series XTMC Mini Contactors |
| Overload Relay Current Range | 9 to 12 A |
| NEMA Size | Not Applicable |
| Width | 1.77 in |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | 45mm |
| Sensing Method | Bimetallic |
| Reset Type - Relay | Manual, Auto |
| Height | 2.56 in |
| Depth | 2.05 in |
| Body Depth - Relay | 2.05 in |
| Trip Class | 10 |
| Body Width - Relay | 1.77 in |
| Overall Height - Relay | 2.56 in |
| Standards | ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| For Use With | XTMC Mini Contactor |
| Features | Manual and Auto Reset |
| Body Height - Relay | 2.56 in |
| Separate Mounting | No |
| Starter Type | IEC |
| Type | Control relay |
| Product Width | 3 in |
| Compliances | CE Marked |
| Certifications | UL Listed |
| Product Height | 2-1/2 in |
| Product Length/Depth | 2 in |
| Product Name | Eaton XT IEC control relay |
| Relay Style | IEC |
| Auxiliary Contact Form | 1NO/1NC |
| Overload Protection Type | Thermal |
| Maximum Operating Temperature | 122 deg F |
| Body Width | 1.77 in |
| Maximum Overload Relay Current Setting | 12 A |
| Mounting Style | Direct To Contactor |
| Reset Type | Manual, Auto |
| Overall Height | 2-1/2 in |
| IP Rating | IP20 |
| Includes Mounting Hardware | Not Applicable |
| Compatible with Series | XT Mini Contactors |
| Minimum Operating Temperature | -13 deg F |
| Phase | Three |
| Minimum Overload Relay Current Setting | 9 A |
| Frame Size | A |
| Body Depth | 1.85 in |
| Body Height | 2.03 in |
| Package Quantity | 1 |
