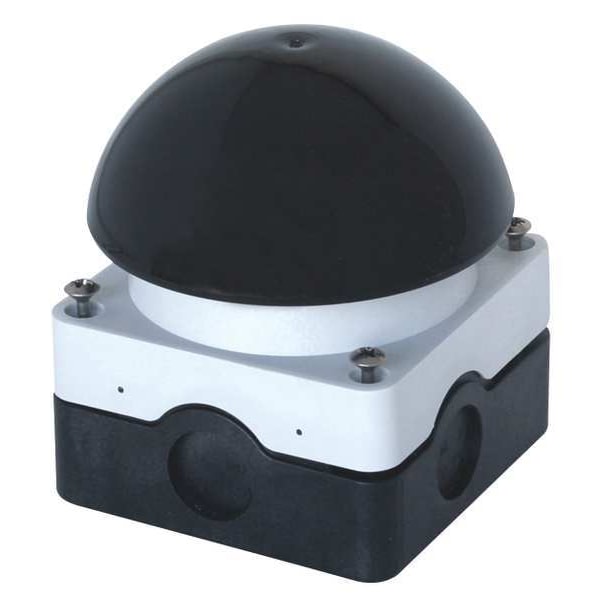

Estación de Control de Interruptor de Palma, 1NO/1NC, 22mm
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Features | All NC contact blocks are positively driven contact. |
| Illuminated / Non-Illuminated | Non-illuminated |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Pilot Lights | 0 |
| Type of Operator | Palm Switch |
| Contact Form | 1NO/1NC |
| Hub Style | Feed-Thru |
| Series | M22 |
| Legend | No Legend |
| Number of Operators | 1 |
| Standards | CCC, CE, CSA, Lloyd's Register |
| For Use With | Palm switch |
| Contact Rating | 10A @ 600V AC, 5A @ 24V DC |
| Item | Palm Switch Control Station |
| Mechanical Interlock | No |
| NEMA Contact Rating Designation | A600 |
| Enclosure Material | Plastic |
| IP Rating | IP67, IP69K |
| Enclosure Color | Gray |
| Mounting Style | Surface |
| Number of Speeds | 1 |
| Length | 4.77 in |
| Operator Color | Black |
| Width | 3.35 in |
| Height | 6.78 in |
| DC Contact Rating | 5 A @ 24 V |
| AC Contact Rating | 10 A @ 600 V |
| Environmental Rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Actuator | Mushroom head |
| Certifications | CCC Marked;CSA Certified;Lloyd's Register Certified |
| Operating Cycles | 1 million |
| Contact Configuration | 1 NO-1 NC |
| Product Width | 3-3/4 in |
| Product Length/Depth | 3.75 in |
| Product Name | Eaton E22 pushbutton |
| Compliances | CE Marked;Bureau Veritas;GoST-R |
| Product Height | 4 in |
| Operating Temperature - Maximum | 131 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Maintained Action Release | Not Applicable |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Overall Height | 4 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 3-3/4 in |
| Pilot Light Color | Not Applicable |
| Resistance Properties | Corrosion Resistant, Shock Resistant, UV/Sunlight Resistant |
| Mounting Orientation | Vertical, Horizontal |
| Product Type | Control Station |
| NEMA Enclosure Rating | 13, 4X |
| Operator Configuration | Switch |
| Overall Width | 3-3/4 in |
| Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
