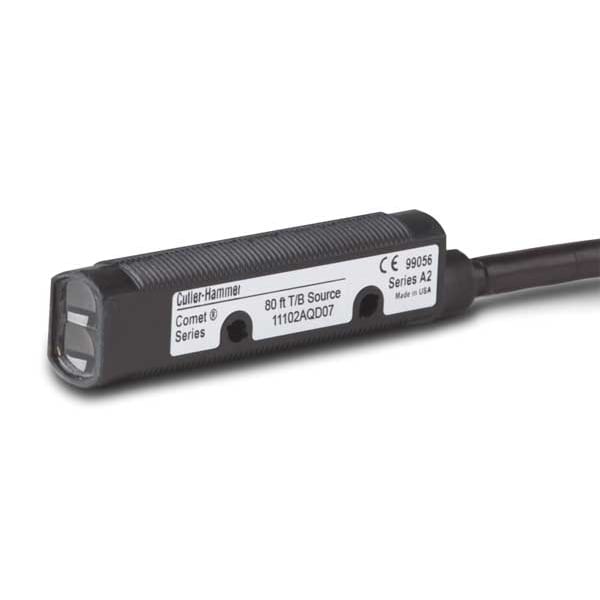

Sensor fotoeléctrico, cilindro, de haz pasante.
| Item | Cylindrical Photoelectric Sensor Transmitter |
|---|---|
| IP Rating | 69K |
| Width | 4.01 in |
| Depth | 0.47 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 300 mA |
| Operating Frequency | 140 Hz |
| Electrical Connection | 2m cable |
| Electrical Connection - Cylindrical Photoelectric Sensor | Cable |
| Response Time | 10 msec |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Transmitter |
| Length | 2-3/4 in |
| Standards | CE Approval, CUL Listed, UL Listed |
| Footnotes | Use with Thru Beam Receiver 2XCA8 |
| Diameter | 18 mm |
| Shape | Cylindrical |
| Length - Cylindrical Photoelectric Sensor | 70 mm |
| Power Requirement | 20 to 264VAC/15 to 30VDC |
| Max. Sensing Distance | 24 m |
| Light Source | Red LED |
| Min. Object Size | Adjustable By Changing Gain |
| Features | Forward Viewing, Short Circuit and Overload Protection |
| Body Material | Solid Polyurethane |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X, 6 |
| Power Requirement - Cylindrical Photoelectric Sensor | 20 to 264V AC/15 to 30V DC |
| Response Time (ms) | 10 |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | Transmitter |
| Sensing Method | Through Beam Transmitter |
| Operating Temp. Range | -20 to 70 deg C |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Operation Mode | Dark On, Selectable Light On |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN |
| Certifications | UL Recognized |
| Sensor type | Through beam |
| Product Width | 0.47 in |
| Input voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Cord length | 79.2 ft |
| Product Length/Depth | 2-3/4 in |
| LED indicator | Power |
| Cable type | Polyvinyl Chloride |
| Enclosure Material | Polyurethane foam |
| Operating temperature - min | -4°F |
| Product Height | 0.71 in |
| Series | Comet |
| Environmental rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Operating temperature - max | 158°F |
| Used with | Used with 80 ft detectors |
| Product Name | Eaton Comet 18mm tubular photoelectric sensor |
| Package Quantity | 1 |
