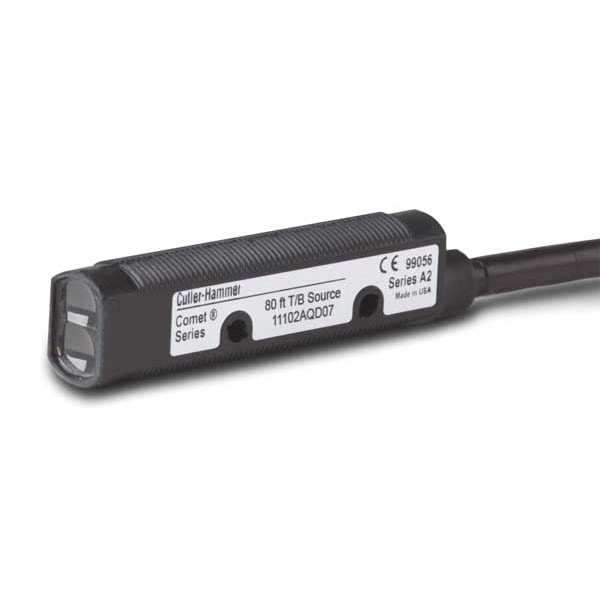

Sensor fotoeléctrico, cilindro, de haz a través.
| Item | Cylindrical Photoelectric Sensor Transmitter |
|---|---|
| IP Rating | 69K |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 250 mA |
| Operating Frequency | 140 Hz |
| Features | Forward Viewing, Short Circuit and Overload Protection |
| Electrical Connection - Cylindrical Photoelectric Sensor | 4-Pin Micro Connector |
| Power Requirement - Cylindrical Photoelectric Sensor | 10 to 30 V DC |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | Transmitter |
| Body Material | Solid Polyurethane |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X, 6 |
| Light Source | Red LED |
| Response Time (ms) | 3.5 |
| Standards | CE Approval, CUL Listed, UL Listed |
| Min. Object Size | Adjustable By Changing Gain |
| Length - Cylindrical Photoelectric Sensor | 70 mm |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN, PNP |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Transmitter |
| Operating Temp. Range | -20 to 70 deg C |
| Cord length | 8 in |
| Product Length/Depth | 0.47 in |
| Operating temperature - max | 158°F |
| Sensor type | Through beam |
| Operating mode | Thru-beam |
| Enclosure Material | Cable jacket: PVC |
| Certifications | UL Recognized |
| Switch type | Photoelectric |
| Product Height | 2-3/4 in |
| Input voltage | 10-30 Vdc |
| Environmental rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K |
| LED indicator | Power on: red |
| Cable type | Polyvinyl Chloride |
| Product Width | 0.71 in |
| Compliances | CE Marked |
| Operating temperature - min | -4°F |
| Product Name | Eaton Comet 18mm tubular photoelectric sensor |
| Package Quantity | 1 |
