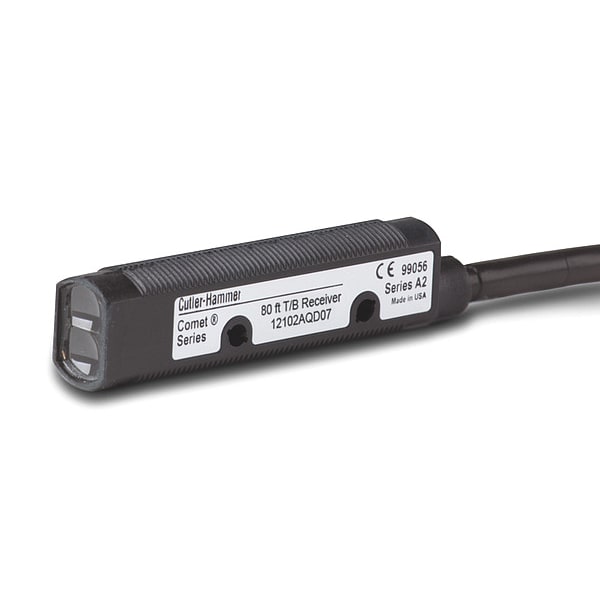

Sensor fotoeléctrico, cilindro, de barrera directa.
| Item | Cylindrical Photoelectric Sensor Receiver |
|---|---|
| IP Rating | 69K |
| Circuit Type | NPN |
| Width | 3.46 in |
| Depth | 0.47 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 300 mA |
| Operating Frequency | 13 Hz |
| Electrical Connection | 4-Pin Micro Connector |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Receiver |
| Body Material | Solid Polyurethane |
| Power Requirement - Cylindrical Photoelectric Sensor | 20 to 264V AC/15 to 30V DC |
| Footnotes | Use with Thru Beam Source 2XCA1 |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN |
| Features | Forward Viewing, Short Circuit and Overload Protection |
| Electrical Connection - Cylindrical Photoelectric Sensor | 4-Pin Micro Connector |
| Diameter | 18 mm |
| Operation Mode | Dark On, Selectable Light On |
| Shape | Cylindrical |
| Power Requirement | 20 to 264VAC/15 to 30VDC |
| Sensing Method | Through Beam Receiver |
| Length - Cylindrical Photoelectric Sensor | 66 mm |
| Standards | CE Approval, CUL Listed, UL Listed |
| Response Time | 10 msec |
| Length | 2.6 in |
| Response Time (ms) | 10 |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X, 6 |
| Operating Temp. Range | -20 to 70 deg C |
| Min. Object Size | Adjustable By Changing Gain |
| Light Source | Infrared LED |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 24 m |
| Maximum AC current | 300 mA |
| Connection | Dual key micro |
| Operating temperature - min | -4°F |
| Sensor type | Through beam |
| Product Width | 0.47 in |
| Protection | Latching short circuit |
| Operating temperature - max | 158°F |
| Contact configuration | DC: NPN open collector |
| Maximum DC current | 300 mA |
| LED indicator | Output ON |
| Environmental rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Enclosure Material | Polyurethane foam |
| Certifications | cUL Recognized |
| Product Height | 0.71 in |
| Number of pins | 4 |
| Product Length/Depth | 2-3/4 in |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Product Name | Eaton Comet 18mm tubular photoelectric sensor |
| Package Quantity | 1 |
