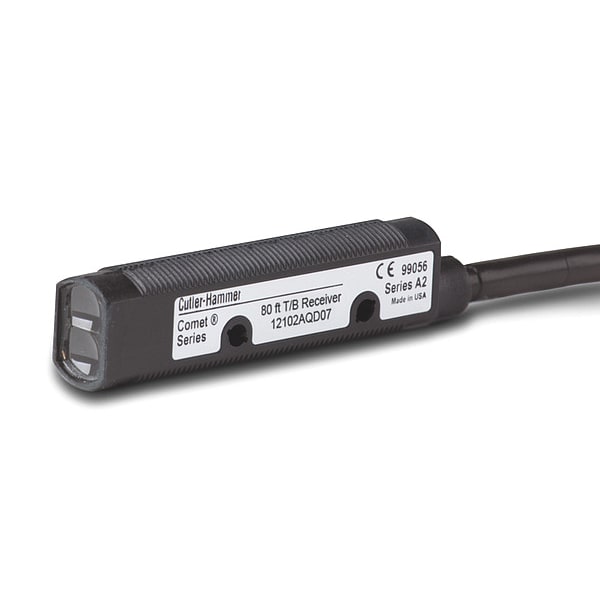

Sensor fotoeléctrico, cilindro, de barrera recta
| Item | Cylindrical Photoelectric Sensor Receiver |
|---|---|
| Circuit Type | NPN/PNP |
| IP Rating | 69K |
| Width | 3.46 in |
| Depth | 0.47 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 250 mA |
| Operating Frequency | 140 Hz |
| Electrical Connection | 4-Pin Micro Connector |
| Max. Sensing Distance | 24 m |
| Sensing Method | Through Beam Receiver |
| Standards | CE Approval, CUL Listed, UL Listed |
| Electrical Connection - Cylindrical Photoelectric Sensor | 4-Pin Micro Connector |
| Response Time (ms) | 3.5 |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 24 m |
| Min. Object Size | Adjustable By Changing Gain |
| Operating Temp. Range | -20 to 70 deg C |
| Response Time | 3.5 msec |
| Length | 2.6 in |
| Diameter | 18 mm |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X, 6 |
| Features | Forward Viewing, Short Circuit and Overload Protection |
| Power Requirement | 10 to 30VDC |
| Light Source | Infrared LED |
| Footnotes | Use with Thru Beam Source 2XCA2 |
| Body Material | Solid Polyurethane |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Receiver |
| Power Requirement - Cylindrical Photoelectric Sensor | 10 to 30 V DC |
| Operation Mode | Dark On, Selectable Light On |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Length - Cylindrical Photoelectric Sensor | 66 mm |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN, PNP |
| Shape | Cylindrical |
| Product Width | 0.71 in |
| Connection | 4-pin M12 connector |
| Enclosure Material | Cable jacket: PVC |
| Cable type | Polyvinyl Chloride |
| Operating temperature - min | -40°F |
| Maximum DC current | 100 mA, 250 mA |
| LED indicator | Output status: red |
| Certifications | UL Recognized |
| Switch type | Photoelectric |
| Contact configuration | NPN and PNP open collector |
| Product Height | 2.6 in |
| Operating temperature - max | 158°F |
| Environmental rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K |
| Contact Rating | 100 mA PNP, 250 mA NPN at 10-30 Vdc |
| Sensor type | Through beam |
| Compliances | CE Marked |
| Product Length/Depth | 0.47 in |
| Cord length | 8 in |
| Protection | Auto reset short circuit |
| Input voltage | 10-30 Vdc |
| Operating mode | Thru-beam |
| Product Name | Eaton Comet 18mm tubular photoelectric sensor |
| Package Quantity | 1 |
