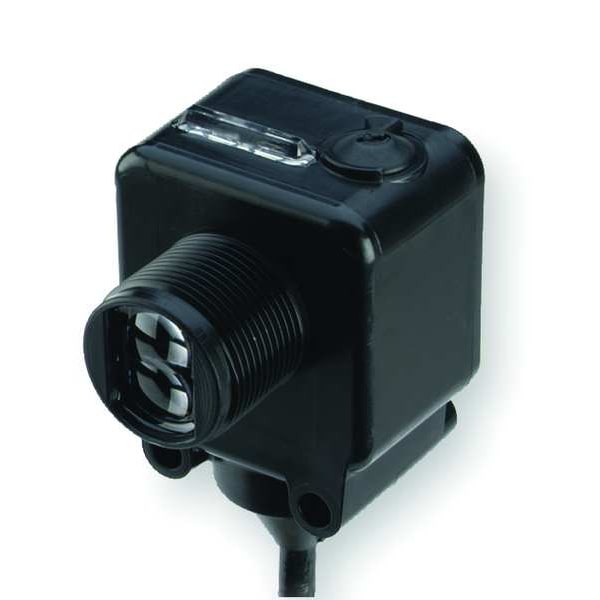

Sensor fotoeléctrico, cilindro, de transmisión directa.
| Item | Cylindrical Photoelectric Sensor Transmitter |
|---|---|
| IP Rating | 68 |
| Circuit Type | NPN/PNP |
| Width | 1.29 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Depth | 1.63 in |
| Max. Load Current | 100 mA |
| Operating Frequency | 500 Hz |
| Electrical Connection | 2m cable |
| NEMA Rating | 1, 12, 13, 3, 4, 6, 6P |
| Footnotes | Use with Thru Beam Receiver 2XDT2 or 2XDR9 |
| Sensing Method | Through Beam Transmitter |
| Light Source | Red LED |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN, PNP |
| Standards | CE Approval, CUL Listed, UL Listed |
| Length - Cylindrical Photoelectric Sensor | 43 mm |
| Shape | Cylindrical |
| Diameter | 18 mm |
| Length | 1.7 in |
| Electrical Connection - Cylindrical Photoelectric Sensor | Cable |
| Response Time (ms) | 1 |
| Response Time | 1 msec |
| Min. Object Size | Adjustable By Changing Gain |
| Power Requirement - Cylindrical Photoelectric Sensor | 10 to 30 V DC |
| Body Material | Cycoloy |
| Operating Temp. Range | -25 to 55 deg C |
| Max. Sensing Distance | 15 m |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Features | Overload and Reverse Polarity Protection, Short Circuit |
| Operation Mode | Dark On, Selectable Light On |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | Transmitter |
| Sensing Method - Cylindrical Photoelectric Sensor | Through Beam Transmitter |
| Power Requirement | 10 to 30VDC |
| Operating temperature - max | 131°F |
| Protection | Auto reset short circuit |
| Environmental rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2 |
| Cord length | 79.2 ft |
| Product Length/Depth | 1.29 in |
| Type | Photoelectric Sensor |
| Operating temperature - min | -13°F |
| Series | E65 |
| Product Height | 1.47 in |
| Certifications | UL Listed |
| Enclosure Material | polycarbonate |
| Input voltage | 10-30 Vdc |
| Product Width | 2.17 in |
| LED indicator | TargetLock: orange |
| Sensor type | Through beam |
| Cable type | Polyvinyl Chloride |
| Product Name | Eaton E65 SM compact photoelectric sensor |
| Package Quantity | 1 |
