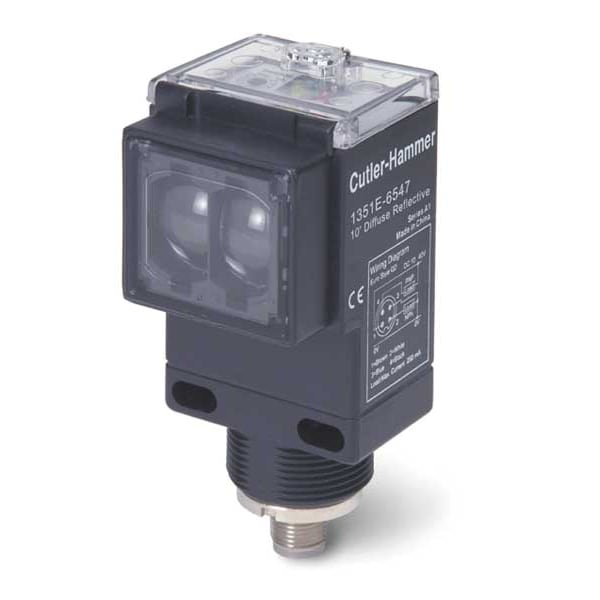

Sensor fotoeléctrico, rectangular, difuso
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 67 |
| Sensing Method - Rectangular Photoelectric Sensor | Diffuse |
| Circuit Type | Solid State Relay SPST |
| Power Requirement - Rectangular Photoelectric Sensor | 24 to 240V AC/12 to 240V DC |
| Width | 1.81 in |
| Output Circuit Type - Rectangular Photoelectric Sensor | Solid State Relay SPST |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Depth | 1.91 in |
| Max. Load Current | 300 mA |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 3 m |
| Operating Frequency | 250 Hz |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Electrical Connection | 2m cable |
| Height - Rectangular Photoelectric Sensor | 88 mm |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X, 6 |
| Body Material | Fiberglass Reinforced Plastic |
| Depth - Rectangular Photoelectric Sensor | 48 mm |
| Response Time | 2 msec |
| Features | Output Short Circuit, Overcurrent and Reverse Polarity Protection |
| Sensing Method | Diffuse |
| Power Requirement | 24 to 240VAC/12 to 240VDC |
| Width - Rectangular Photoelectric Sensor | 46 mm |
| Operation Mode | Dark On, Selectable Light On |
| Length | 3.46 in |
| Shape | Rectangular |
| Light Source | Infrared LED |
| Min. Object Size | Adjustable By Changing Gain |
| Max. Sensing Distance | 3 m |
| Operating Temp. Range | -25 to 55 deg C |
| Standards | CE Approval, CSA Certified, UL 508 Listed |
| Product Width | 1.81 in |
| Sensor type | Diffuse reflective |
| Contact Rating | 300 mA at 240 Vac/Vdc |
| Cord length | 79.2 ft |
| Switch type | Photoelectric |
| Certifications | CSA Certified |
| Product Length/Depth | 1.91 in |
| Connection | 6.6 ft (2 m) cable |
| Contact configuration | relay |
| Protection | Reverse polarity and short circuit protected |
| Input voltage | 12-240 Vdc, 24-240 Vac |
| Operating temperature - max | 131°F |
| Cable type | Polyvinyl Chloride |
| Environmental rating | IP67, IP69K |
| Operating temperature - min | -13°F |
| LED indicator | Power on: yellow |
| Enclosure Material | Fiberglass reinforced plastic |
| Operating mode | Diffuse reflective |
| Maximum DC current | 300 mA |
| Product Height | 5.2 in |
| Maximum AC current | 300 mA |
| Package Quantity | 1 |
