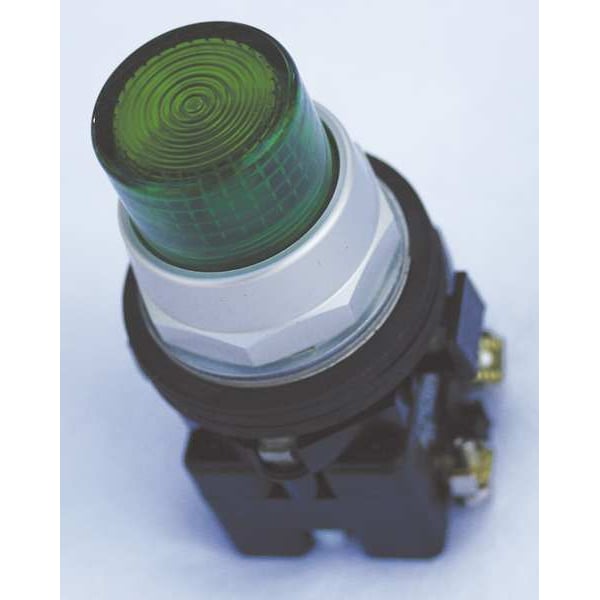

Unidad completa de luz piloto, LED, verde.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Action | Momentary |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Saddle Clamp |
| Lens Material | Plastic |
| Bezel | Chrome |
| Size | 30 mm |
| Lens Type | Fresnel |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Includes | Lamp, Lens |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Lamp Voltage | 120V AC |
| Standards | CSA, UL Listed |
| Body Material | Aluminum |
| IP Rating | IP10 |
| Replacement Lamps | 39R132 |
| Height | 2 in |
| Length | 3 in |
| Width | 2 in |
| Enclosure | NEMA 3;NEMA 13;NEMA 4;NEMA 12;NEMA 3R;NEMA 4X |
| Type | Watertight, Oiltight-HT800 |
| Product Name | Eaton HT800 pushbutton |
| Light Unit Type | LED, full voltage |
| Actuator | PresTest |
| Light Unit Voltage | 120 Vac/dc |
| Certifications | UL Listed;CSA Certified |
| Illumination | Illuminated |
| Body Finish | Anodized |
| Series | HT800 |
| Overall Width | 2 in |
| Overall Depth | 3 in |
| Lamp Color | Green |
| Lamp Voltage - Maximum | 120 V AC/DC |
| Overall Height | 2 in |
| Includes Push-To-Test | Push-To-Test Included |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R |
| Manufacturer Warranty Length | 1 yr |
| Voltage Rating - Maximum | 120 V AC/DC |
| Lens Color | Green |
| Includes Lens | Lens Included |
| Resistance Properties | Corrosion Resistant, Oil and Grease Resistant, Watertight |
| Includes Lamp Module | Lamp Module Included |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
