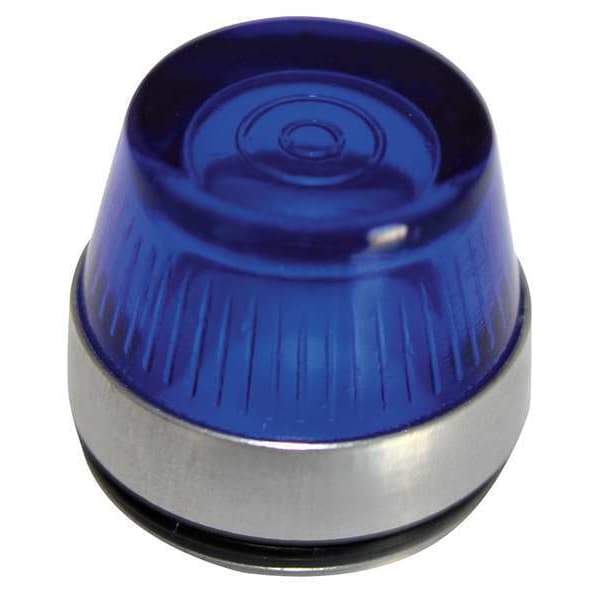

Lente del piloto, 30mm, Azul, Plástico.
| Size | 30 mm |
|---|---|
| Item | Pilot Light Lens |
| For Use With | Eaton 10250T Push-to-Test Operators |
| Legend | Blank |
| Color | Blue |
| Lens Type | Fresnel |
| Material | Glass |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Standards | CE, CSA, UL Listed |
| IP Rating | IP65 |
| Type | Oiltight, 30.5 mm Heavy-Duty Watertight |
| Product Width | 1 in |
| Bus material | Glass |
| Certifications | UL Listed |
| Actuator color | Blue |
| Used with | Pushbutton, PresTest |
| Product Height | 0.8 in |
| Compliances | CE Marked |
| Product Length/Depth | 1 in |
| Series | 10250T |
| Product Name | Eaton 10250T pushbutton lens |
| Overall Width | 1 in |
| Manufacturer Warranty Length | 1 yr |
| Compatible Lamp Type | Incandescent, LED |
| Overall Height | 0.8 in |
| Panel Cutout Diameter | 30 mm |
| Overall Depth | 1 in |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13, 1, 2 |
| Compatible with Brand | Eaton |
| Compatible with Series | 10250T PresTest |
| Package Quantity | 1 |
