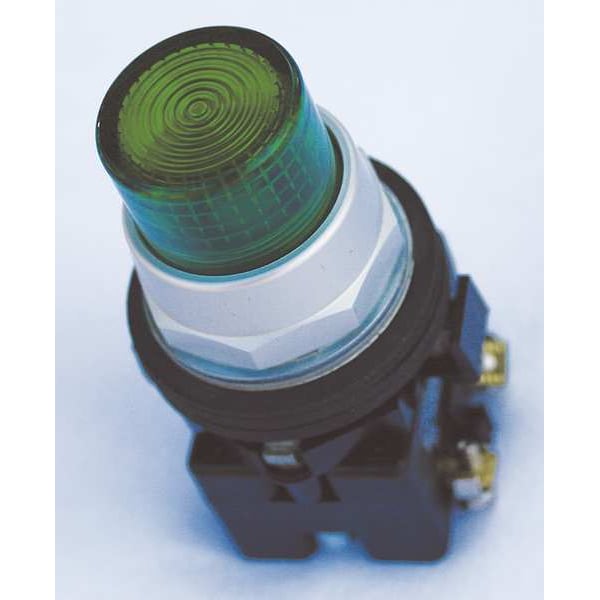

Lente de luz piloto, 30mm, verde, de plástico.
| Item | Pilot Light Lens |
|---|---|
| Size | 30 mm |
| For Use With | Pres-Test Lights and Illuminated Push Button |
| Color | Green |
| Lens Type | Fresnel |
| Material | Plastic |
| Standards | CSA, UL Listed |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| IP Rating | IP66 |
| Application | Replacement Lense |
| Type | 30.5 mm, Oiltight, Watertight |
| Special Features | HT800 series |
| Used with | PresTest lights illuminated pushbuttons |
| Bus material | Plastic |
| Product Width | 1 in |
| Actuator color | Green |
| Product Height | 1 in |
| Product Length/Depth | 1 in |
| Certifications | CSA Certified |
| Product Name | Eaton HT800 pushbutton |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13, 1, 2 |
| Overall Height | 1 in |
| Overall Width | 1 in |
| Panel Cutout Diameter | 30 mm |
| Compatible with Brand | Eaton |
| Manufacturer Warranty Length | 1 yr |
| Compatible with Series | HT800 PresTest |
| Overall Depth | 1 in |
| Compatible Lamp Type | Incandescent, LED |
| Package Quantity | 1 |
