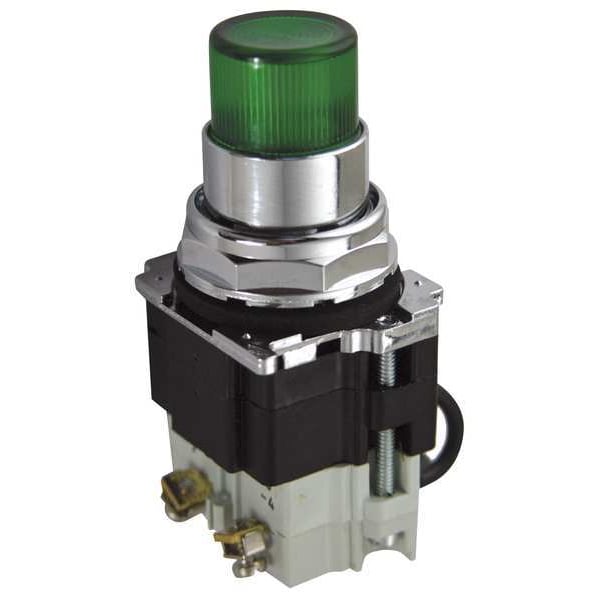

Luz piloto, Presione, 120VCA, Verde.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Saddle Clamp |
| Lens Material | Plastic |
| Lens Type | Fresnel |
| Size | 30 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Includes | Light Module, Operator |
| Standards | CE, CSA, UL Listed |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Body Material | Metal |
| IP Rating | IP65 |
| Lamp Voltage | 120V AC |
| Replacement Lamps | 39R132 |
| Width | 2.2 in |
| Height | 4.7 in |
| Length | 2.6 in |
| Type | Oiltight, Heavy-Duty Watertight |
| Style | 30.5 mm |
| Actuator | PresTest |
| Light Unit Voltage | 120 Vac |
| Product Name | Eaton 10250T pushbutton |
| Light Unit Type | LED, full voltage |
| Rating | NEMA 4X;NEMA 4;NEMA 13;NEMA 3;NEMA 3R;NEMA 12 |
| Series | 10250T |
| Certifications | CSA Certified;UL Listed |
| Compliances | CE Marked |
| Includes Lamp Module | Lamp Module Included |
| Overall Width | 2.2 in |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R |
| Lens Color | Green |
| Includes Lens | Lens Included |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Overall Depth | 2.6 in |
| Voltage Rating - Maximum | 120 V AC |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | 120 V AC |
| Manufacturer Warranty Length | 1 yr |
| Lamp Color | Green |
| Overall Height | 4.7 in |
| Body Finish | Chrome Plated |
| Includes Push-To-Test | Push-To-Test Included |
| Package Quantity | 1 |
