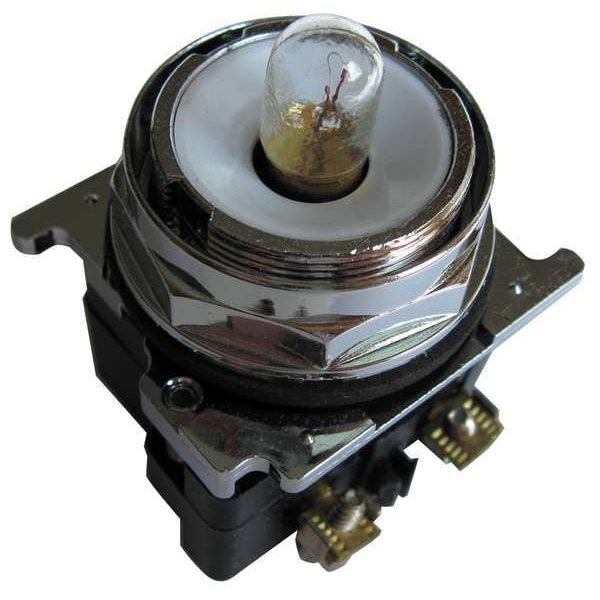

Luz piloto, sin lente, 208-240V.
| Item | Pilot Light |
|---|---|
| Voltage | 240V AC |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Saddle Clamp |
| Lens Material | No Lens Included |
| Size | 30 mm |
| Lens Type | No Lens Included |
| Lamp Module Type | Transformer |
| Basic Material | Metal |
| Body Material | Metal |
| Standards | CE, CSA, UL Listed |
| Lamp Voltage | 6V AC/DC |
| IP Rating | IP65 |
| Includes | Light Module, Operator |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Replacement Lamps | 6VF17 |
| Width | 2.1 in |
| Length | 2.4 in |
| Height | 3.2 in |
| Type | Oiltight, Heavy-Duty Watertight |
| Series | 10250T |
| Actuator | Standard |
| Rating | NEMA 13;NEMA 3R;NEMA 4X;NEMA 3;NEMA 12;NEMA 4 |
| Style | 30.5 mm |
| Product Name | Eaton 10250T pushbutton |
| Compliances | CE Marked |
| Light Unit Type | Incandescent, transformer |
| Light Unit Voltage | 240 Vac |
| Certifications | UL Listed;CSA Certified |
| Overall Height | 3.2 in |
| Lamp Voltage - Maximum | 240 V AC |
| Includes Lens | No Lens Included |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R |
| Lens Color | No Lens Included |
| Panel Cutout Diameter | 30 mm |
| Voltage Rating - Maximum | 240 V AC |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 2.4 in |
| Body Finish | Chrome Plated |
| Includes Push-To-Test | No Push-To-Test Included |
| Includes Lamp Module | Lamp Module Included |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Lamp Color | Clear |
| Overall Width | 2.1 in |
| Package Quantity | 1 |
