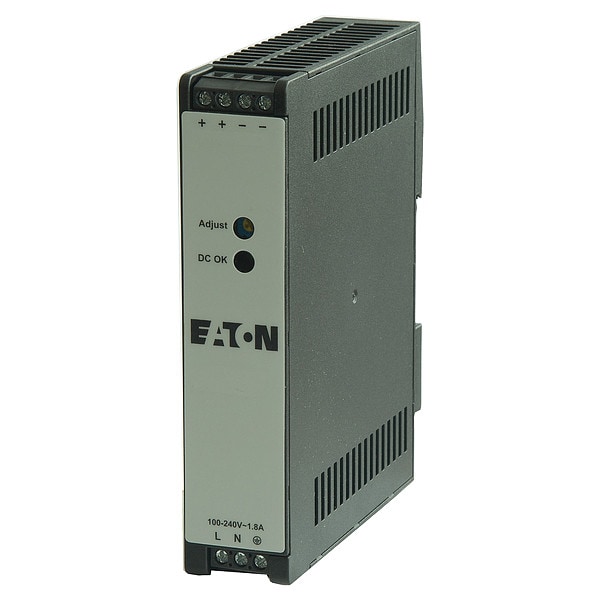

Power Supply, 100/240V AC, 12V DC, 60W, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 12V DC |
| Power Rating | 60 W |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.323 in |
| Width | 1.693 in |
| Depth | 4.043 in |
| Hz | 50/60 Hz |
| Series | PSG |
| Status Indicator | Green LED |
| Standards | CE, CSA, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant, UL 508 |
| IP Rating | IP20 |
| Certifications | cUL Certified; EN Listed; CSA Certified; IEC Rated; UL 508; cULus/UL 60950-1 |
| Compliances | CE Marked;German Safety |
| Operating Temperature - Minimum | -13 deg F |
| Mean Time Between Failures (MTBF) | 8,000,000 hr |
| Output Power - Rated | 60 W |
| Current - Output | 5 A |
| Wire Connection Type | Terminals |
| Manufacturer Warranty | 3 yr |
| Housing Material | Plastic |
| Operating Temperature - Maximum | 176 deg F |
| Package Quantity | 1 |
