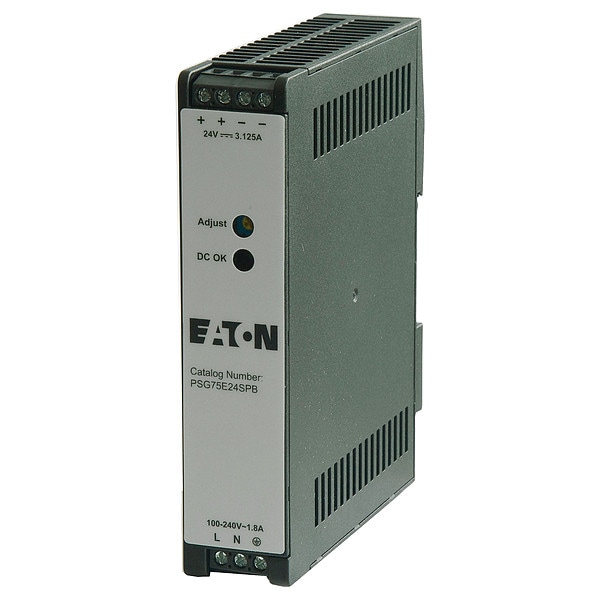

Power Supply, 100/240V AC, 24V DC, 75W, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 75 W |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Height | 7.4 in |
| Width | 12 in |
| Depth | 19.8 in |
| IP Rating | IP20 |
| Status Indicator | Red LED |
| Series | PSG |
| Standards | CE, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant |
| Certifications | IEC Rated; cULus/UL 60950-1; EN Listed; cUL Recognized |
| Compliances | CE Marked;German Safety |
| Output Power - Rated | 75 W |
| Mean Time Between Failures (MTBF) | 7,000,000 hr |
| Current - Output | 3.125 A |
| Operating Temperature - Maximum | 176 deg F |
| Start Up Time - Maximum | 1 msec |
| Manufacturer Warranty | 3 yr |
| Operating Temperature - Minimum | -13 deg F |
| Wire Connection Type | Terminals |
| Maximum Efficiency @ 230V AC | 89% |
| Housing Material | Plastic |
| Current - Inrush | 50 A |
| Package Quantity | 1 |
