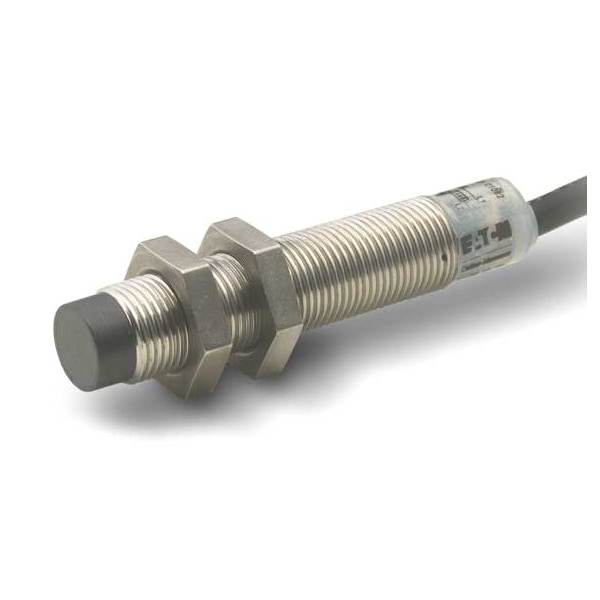

Sensor de proximidad, inductivo, 12mm, NPN, normalmente cerrado.
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 6 to 48 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NC |
| Length | 73 mm |
| Proximity Sensor Diameter | 12 mm |
| Max. Detecting Distance | 10 mm |
| Width | 0.47 in |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 0.47 in |
| Basic Proximity Sensor Case Material | Metal |
| Shielded / Unshielded | Unshielded |
| Proximity Sensor Operating Frequency | 800 Hz |
| Case Material | 303 Stainless Steel |
| Max. Current Load | 500 mA |
| IP Rating | 67 |
| Description/Special Features | 360 Degrees Viewable LED Output Indication |
| Standards | CE Compliance, cUL Listed |
| NEMA Rating | 12, 13, 4, 4X, 6, 6P |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 73 mm |
| Series | E57 |
| Product Name | Eaton E57 inductive proximity sensor |
| Actuator Function | Non-embeddable |
| Connection | 6.6 ft (2 m) cable |
| Enclosure Material | Front cap: polyphenylene sulfide;End bell: polycarbonate;Tube: stainless steel |
| Operating Temperature - Max | 158 °F |
| Product Height | 2.87 in |
| Certifications | CSA Certified;UL Listed |
| Compliances | CE Marked |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Operating Temperature - Min | -13 °F |
| Cord Length | 79.2 ft |
| Cable Type | Polyvinyl Chloride (PVC) |
| Accuracy | < 3% of sensing distance |
| Protection | Auto reset short circuit |
| Maximum DC Current | 500 mA |
| Contact Rating | 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc |
| Input Voltage | 6 to 48 Vdc |
| Sensor Type | Inductive proximity |
| Contact Configuration | NC, NPN |
| Led Indicator | Green power up turns red when output energized |
| Package Quantity | 1 |
