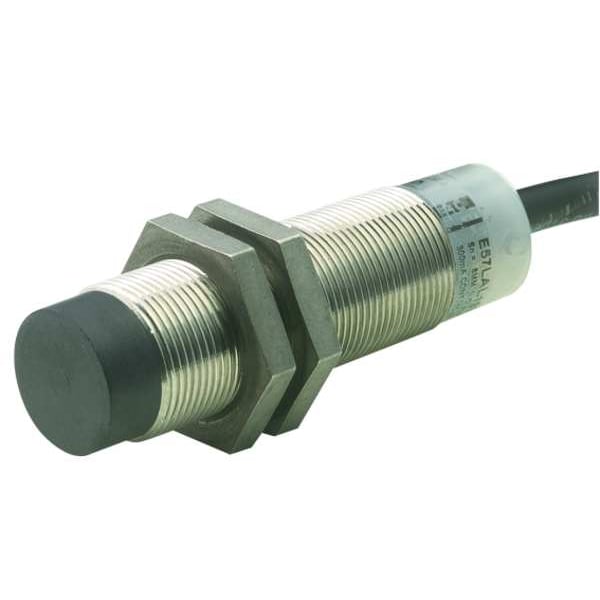

Sensor de proximidad, inductivo, 20mm, NPN, normalmente cerrado.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 6 to 48 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NC |
| Proximity Sensor Diameter | 18 mm |
| Length | 69 mm |
| Max. Detecting Distance | 20 mm |
| Width | 0.71 in |
| Proximity Sensor Electrical Connection | 4 Pin Micro DC Connector |
| Depth | 0.71 in |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Metal |
| Case Material | 303 Stainless Steel |
| Proximity Sensor Operating Frequency | 500 Hz |
| Standards | CE Compliance, cUL Listed |
| Description/Special Features | 360 Degrees Viewable LED Output Indication |
| NEMA Rating | 12, 13, 4, 4X, 6, 6P |
| Max. Current Load | 500 mA |
| Operating Temp. Range | -13 to 158 deg F |
| IP Rating | 67 |
| Length (Straight Wireway) | 69 mm |
| Series | E57 |
| Accuracy | < 3% of sensing distance |
| Product Height | 2.72 in |
| Operating Temperature - Min | -13 °F |
| Actuator Function | Non-embeddable |
| Compliances | CE Marked |
| Maximum DC Current | 500 mA |
| Contact Rating | 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Led Indicator | Green power up turns red when output energized |
| Connection | 4-pin M12 connector |
| Sensor Type | Inductive proximity |
| Certifications | UL Listed;CSA Certified |
| Protection | Auto reset short circuit |
| Product Name | Eaton E57 inductive proximity sensor |
| Contact Configuration | NC, NPN |
| Input Voltage | 6 to 48 Vdc |
| Operating Temperature - Max | 158 °F |
| Enclosure Material | Tube: stainless steel;Front cap: polyphenylene sulfide;End bell: polycarbonate |
| Package Quantity | 1 |
