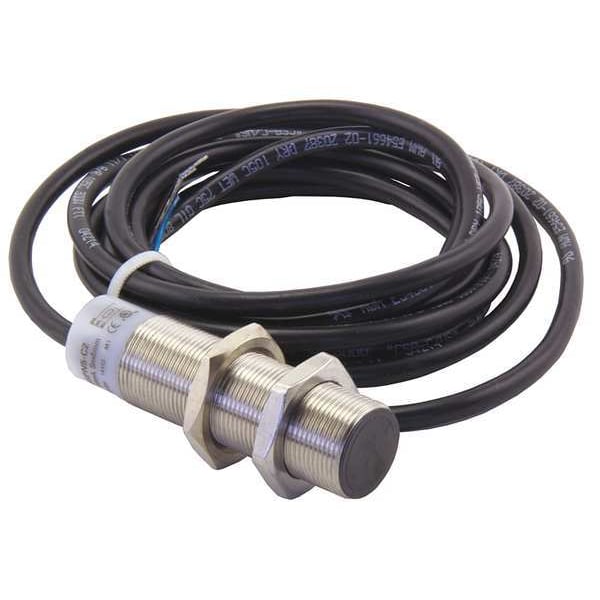

ProxSwitch, 18mm, sin blindaje, NPN, Normalmente Abierto, 2m.
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Length | 66 mm |
| Proximity Sensor Diameter | 18 mm |
| Max. Detecting Distance | 8 mm |
| Width | 6 in |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 2 in |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Metal |
| Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | 1,200 Hz |
| Max. Current Load | 100 mA |
| IP Rating | 67 |
| Standards | CE Compliance, cUL Listed, UL Listed |
| Operating Temp. Range | -13 to 158 deg F |
| Description/Special Features | Proximity Switch |
| NEMA Rating | 4X |
| Length (Straight Wireway) | 66 mm |
| Series | E57G |
| Indicator Type | LED |
| Product Name | Eaton E57 inductive proximity sensor |
| Type | E57G Proximity Sensor |
| Product Height | 5 in |
| Certifications | UL Listed |
| Package Quantity | 1 |
