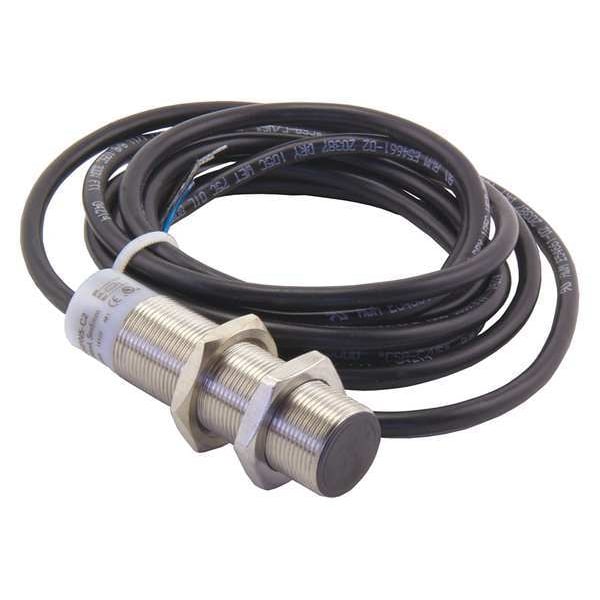

ProxSwitch corto de 18mm, con blindaje, NPN, normalmente abierto, 2 metros.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 48 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NC |
| Length | 41 mm |
| Proximity Sensor Diameter | 18 mm |
| Max. Detecting Distance | 5 mm |
| Width | 5-1/4 in |
| Proximity Sensor Electrical Connection | 4 Pin Micro Connector |
| Depth | 6-1/4 in |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | Metal |
| Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | 1,200 Hz |
| Max. Current Load | 300 mA |
| Standards | CE Compliance, cUL Listed, UL Listed |
| Description/Special Features | Proximity Switch-Short Body |
| NEMA Rating | 4X |
| IP Rating | 67 |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 41 mm |
| Certifications | UL Listed |
| Product Height | 2 in |
| Type | Inductive proximity sensor |
| Product Length/Depth | 6-1/4 in |
| Product Name | Eaton E57 inductive proximity sensor |
| Product Width | 5-1/4 in |
| Package Quantity | 1 |
