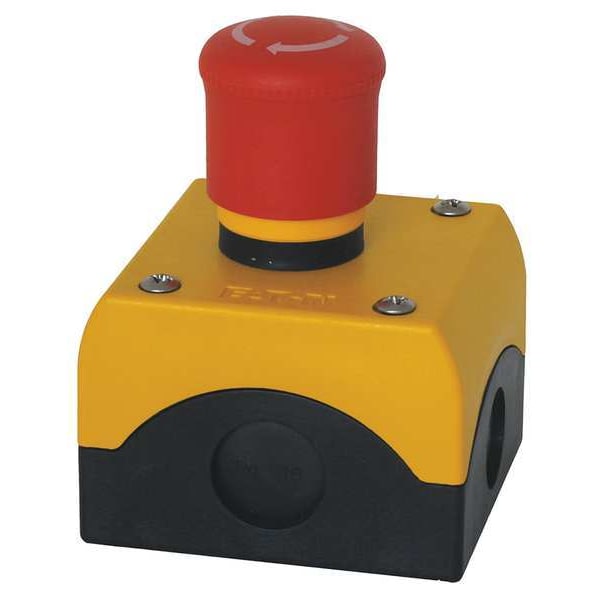

Estación de control de botón pulsador, 1 contacto normalmente abierto, cabeza de hongo.
| Action | Maintained |
|---|---|
| Size | 22 mm |
| Features | 25% smaller depth than most competitor enclosures. Imoact resistant polycarbonate enclosure |
| Head Material | Metal |
| Illuminated / Non-Illuminated | Non-illuminated |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Pilot Lights | 0 |
| Type of Operator | 40mm Mushroom Head |
| Contact Form | 1NO |
| Series | M22 |
| Hub Style | Feed-Thru |
| Legend | Stop |
| Standards | CCC, CE, CSA, GoST-R, Lloyd's Register |
| Number of Operators | 1 |
| For Use With | Control Station, Emergency Stop Operator |
| Contact Rating | 10A @ 600V AC, 5A @ 24V DC |
| Item | Control Station |
| Mechanical Interlock | No |
| Enclosure Material | Plastic |
| IP Rating | IP66 |
| NEMA Contact Rating Designation | A600 |
| Length | 2.83 in |
| Width | 3.15 in |
| Enclosure Color | Yellow |
| Number of Speeds | 1 |
| Height | 2.7 in |
| Operator Color | Red |
| DC Contact Rating | 5 A @ 24 V |
| Button Color | Red |
| AC Contact Rating | 10 A @ 600 V |
| Product Name | Eaton M22 pushbutton control station |
| Contact Configuration | 1 NO |
| Orientation | Horizontal |
| Actuator Function | Maintained |
| Compliances | GoST-R;CE Marked;Bureau Veritas |
| Environmental Rating | IP66, NEMA 4X, NEMA 13 |
| Certifications | CSA Certified;CCC Marked;Lloyd's Register Certified |
| Base | Black |
| Actuator | Twist-to-release mushroom head |
| Panel Cutout Diameter | 22 mm |
| Overall Width | 3.15 in |
| Manufacturer Warranty Length | 18 mo |
| Product Type | Control Station |
| Operator Configuration | Push Buttons |
| Pilot Light Color | Not Applicable |
| Overall Height | 2.7 in |
| Overall Depth | 2.83 in |
| NEMA Enclosure Rating | 13, 4X |
| Resistance Properties | Impact Resistant |
| Mounting Orientation | Vertical, Horizontal |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Maintained Action Release | Twist |
| Package Quantity | 1 |
