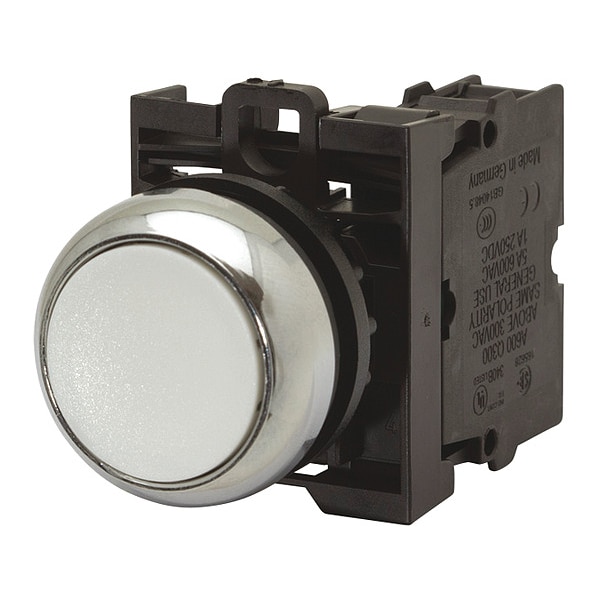

Botón de presión, 22.5 mm, 1 contacto normalmente abierto/1 contacto normalmente cerrado, blanco.
| Action | Maintained |
|---|---|
| Size | 22.5 mm |
| Legend/Background Color | White, No Legend |
| Head Material | Plastic |
| NEMA Rating | 4X |
| Type of Operator | Flush Button |
| Lamp Type | LED |
| Contact Form | 1NO/1NC |
| Color | White |
| Legend | No Legend |
| Bezel | Silver Coated |
| Number of Operators | 1 |
| Item | Illuminated Push Button |
| Bezel Material | Nylon |
| Series | M22 |
| IP Rating | IP67, IP69K |
| Terminal Connection | Screw Clamp |
| Lamp Module Type | Full Voltage |
| DC Contact Rating | 3 A @ 24 V |
| AC Contact Rating | 6 A @ 240 V |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Special Features | M22 series |
| Type | Pushbutton |
| Voltage | 85 to 264 V |
| Contact Type | 1NO/1NC |
| Legend Markings | No Legend |
| Product Type | Push Button Operators |
| Product Height | 1 in |
| Degree of protection | NEMA 4X |
| Operating mode | Maintained |
| Certifications | CCC Marked |
| Contact configuration | 1 NC |
| Environmental rating | IP67, IP69K |
| Compliances | Bureau Veritas |
| Actuator Color | Red |
| Illumination | Non-illuminated |
| Actuator function | Maintained |
| Product Length/Depth | 4 in |
| Actuator | Mushroom |
| Button color | Red |
| Product Width | 4 in |
| Voltage Rating | 85-264 V |
| Product Name | Eaton M22 modular pushbutton |
| Operator Illumination | Illuminated |
| Mechanical Operating Durability | 1.00 x 10^6 |
| Operating Temperature - Minimum | -13 deg F |
| Mushroom Head Diameter | Not Applicable |
| Overall Depth | 2.26 in |
| Maintained Action Release | Push |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Push Button Style | Flush |
| Overall Height | 1 in |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 1 yr |
| Lamp Voltage - Maximum | 264 V AC/DC |
| Operator Material | Plastic |
| Number of Indicator Lights | 0 |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Corrosion Resistant |
| Overall Width | 1 in |
| Operator Voltage Rating - Maximum | 264 V |
| Head Color | White |
| Package Quantity | 1 |
