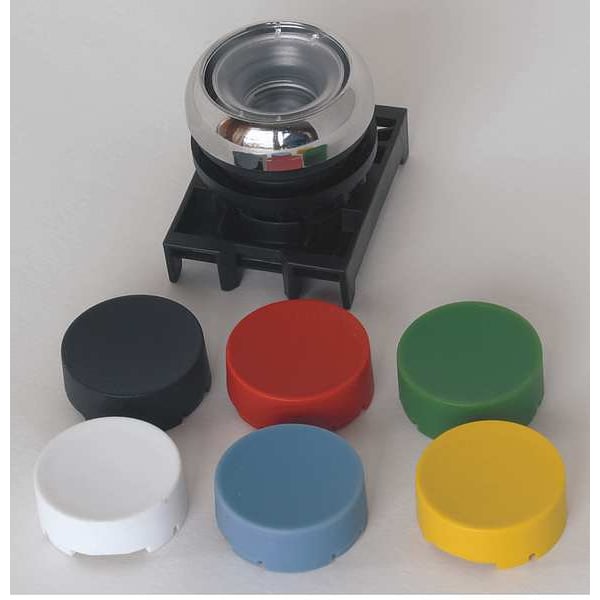

Operador de botón pulsador, 22 mm, Multi
| Action | Maintained |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | Extended Button |
| Lamp Type | LED |
| Color | Multi |
| Legend | Not Applicable |
| Bezel | Metal |
| Number of Operators | 1 |
| Item | Extended Push Button |
| Bezel Material | Metal |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| IP Rating | IP67, IP69K |
| Includes | Metal Bezel |
| Basic Material | Metal |
| Terminal Connection | Screw Clamp |
| Features | Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter |
| Lamp Module Type | Not Applicable |
| Series | M22 |
| Operating mode | Maintained |
| Illumination | Non-illuminated |
| Certifications | CCC Marked |
| Product Length/Depth | 7 in |
| Product Height | 1-1/2 in |
| Product Width | 5 in |
| Compliances | CE Marked |
| Enclosure | NEMA 4X |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Button color | Red, green, Black, white, yellow, blue |
| Product Name | Eaton M22 modular pushbutton |
| Mushroom Head Diameter | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Manufacturer Warranty Length | 1 yr |
| Resistance Properties | Corrosion Resistant |
| Overall Height | 1-1/2 in |
| Overall Depth | 7 in |
| Head Color | Red, Green, Black, White, Yellow, Blue |
| Operator Material | Metal |
| Panel Cutout Diameter | 22 mm |
| Legend Color | Not Applicable |
| Overall Width | 5 in |
| Push Button Style | Extended |
| Legend Background Color | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Number of Indicator Lights | 0 |
| Maintained Action Release | Push |
| Operating Temperature - Maximum | 158 deg F |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | 13, 4X |
| Package Quantity | 1 |
