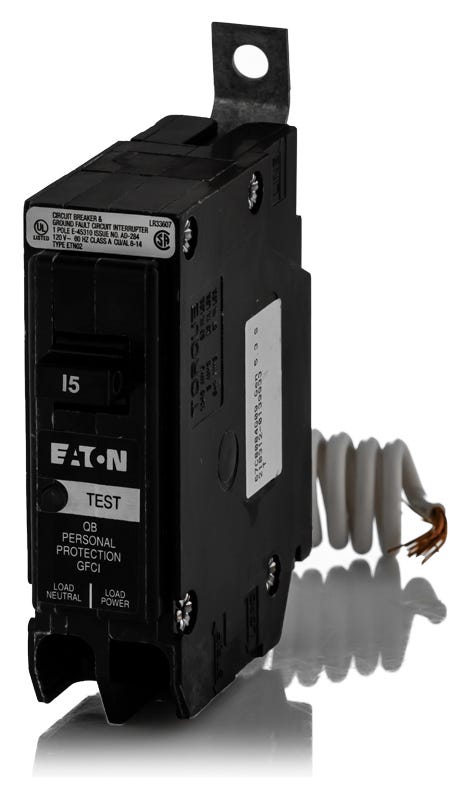

The Eaton QB1015GF is a 1 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The QB1015GF has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | #14 to 4 AWG |
| For Use With | Load Centers and Fuseboxes |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QB1015GF |
| Upc | 786680222481 |
