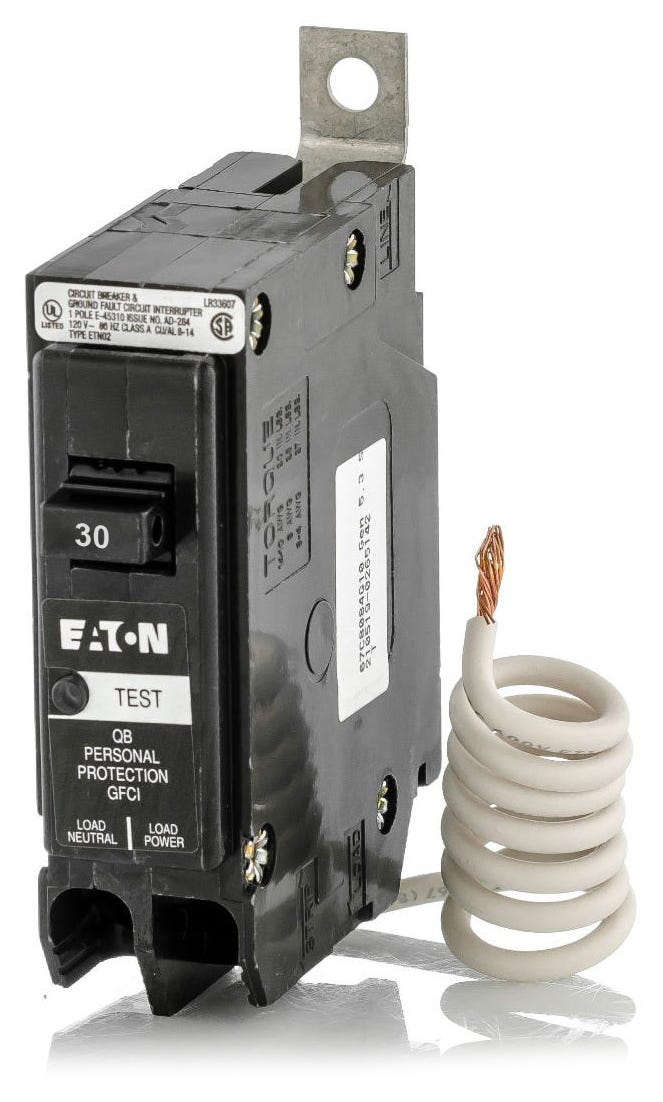

The Eaton QB1030GF is a 1 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The QB1030GF has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 4 AWG |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | QB1030GF |
| Upc | 786680222429 |
