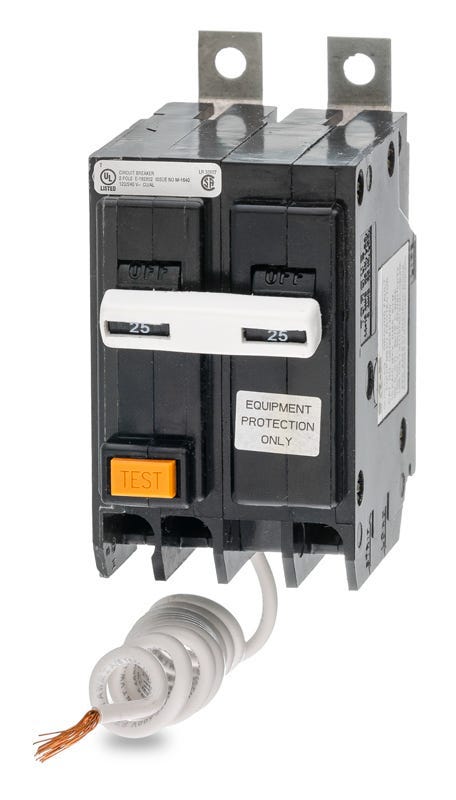

The Eaton QBGFEP2025 is a 2 Pole molded case ground fault circuit breaker with a current rating of 25 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC. The QBGFEP2025 has a bolt-on connection type and includes LI - long time and instantaneous functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 25 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 10kAIC |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Load side lug |
| Standards | UL |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QBGFEP2025 |
| Upc | 786679145166 |
