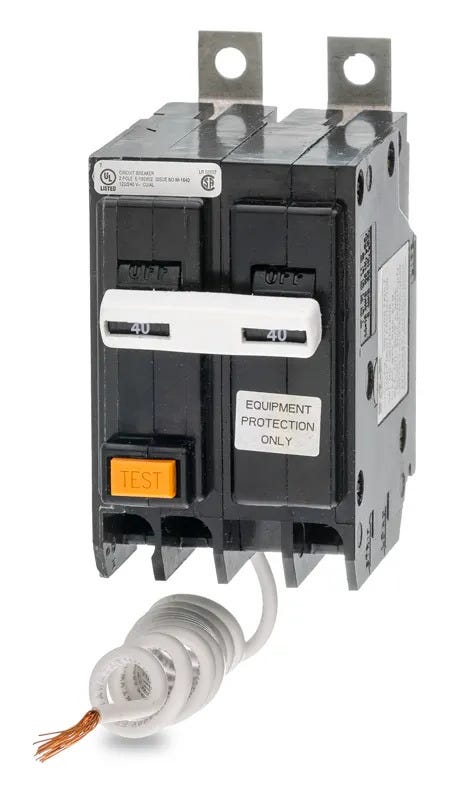

The Eaton QBGFEP2040 is a 2 Pole molded case ground fault circuit breaker with a current rating of 40 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The QBGFEP2040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 40 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 8 AWG |
| Standards | HACR |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QBGFEP2040 |
| Upc | 786679145180 |
