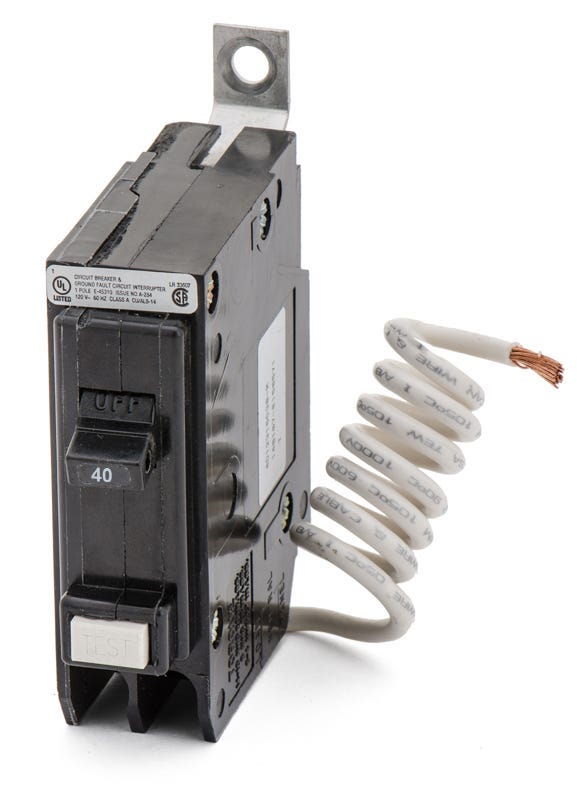

The Eaton QBGFT1040 is a 1 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 40 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The QBGFT1040 has a bolt-on mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 40 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | BAB |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 8 AWG, 8 AWG to 6 AWG, Cu/Al |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | QBGFT1040 |
| Upc | 786680130991 |
