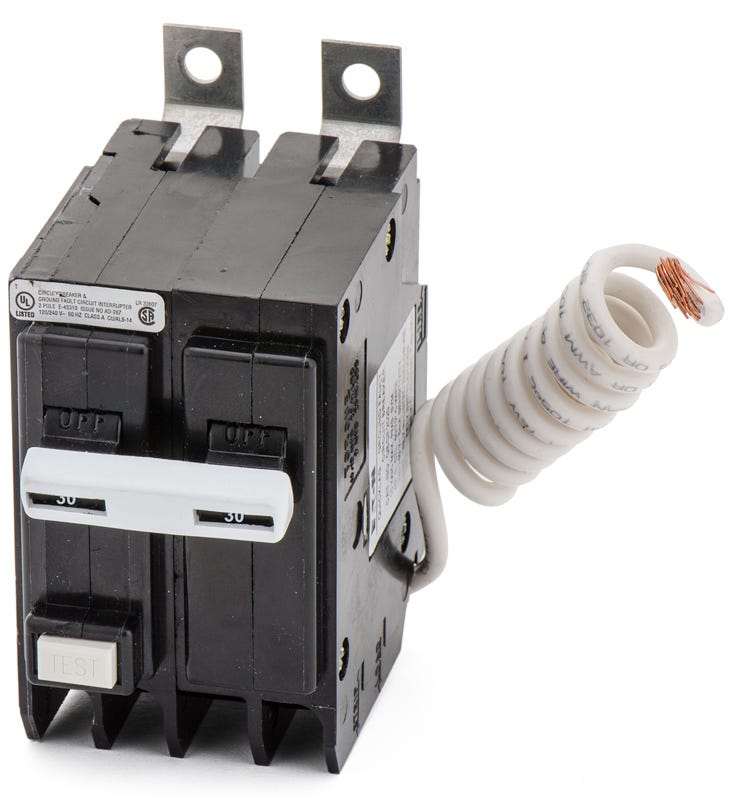

The Eaton QBGFT2030 is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The QBGFT2030 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 4.5 |
| Width (in) | 2.75 |
| Height (in) | 2 |
| Wire Gauge | AWG 10, Cu, AWG 8, Al |
| Standards | HACR |
| Circuit Breaker Type | GFCI |
| Breaker Feature | 5 mA Trip Sensitivity |
| Mpn | QBGFT2030 |
| Upc | 786676026734 |
| Gtin | 786676026734 |
