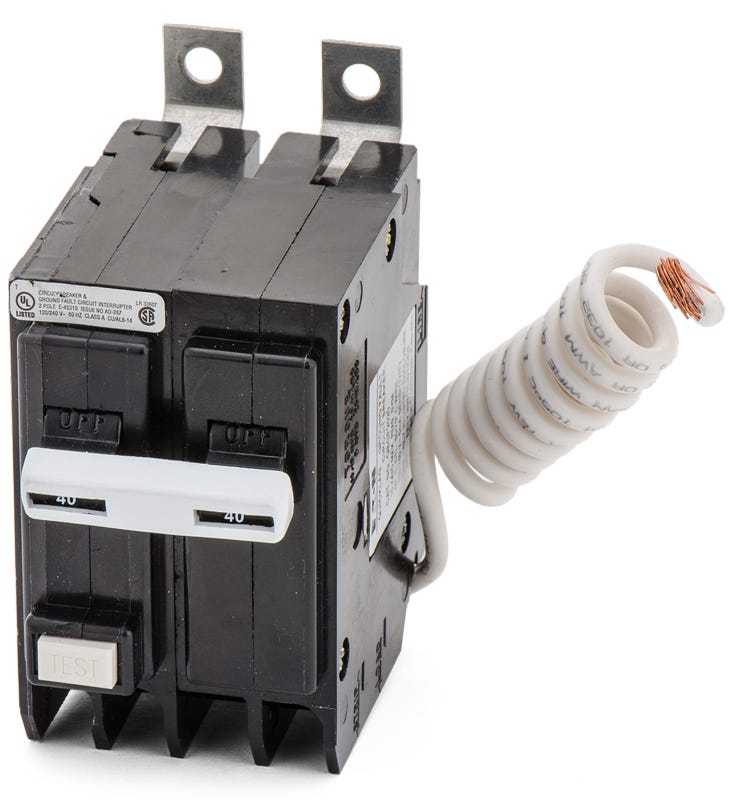

The Eaton QBGFT2040 is a 2 pole thermal magnetic molded case GFCI circuit breaker with a current rating of 40 amps and a voltage rating of 120/240 v. It has an interrupt rating of 10 kAIC. The QBGFT2040 has a bolt-on mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 40 A |
| Voltage | 120/240 V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10 kAIC |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | #8 Cu, #8–6 Al |
| Temperature Rating | 40°C |
| Circuit Breaker Type | QBGF |
| Upc | 786676026741 |
