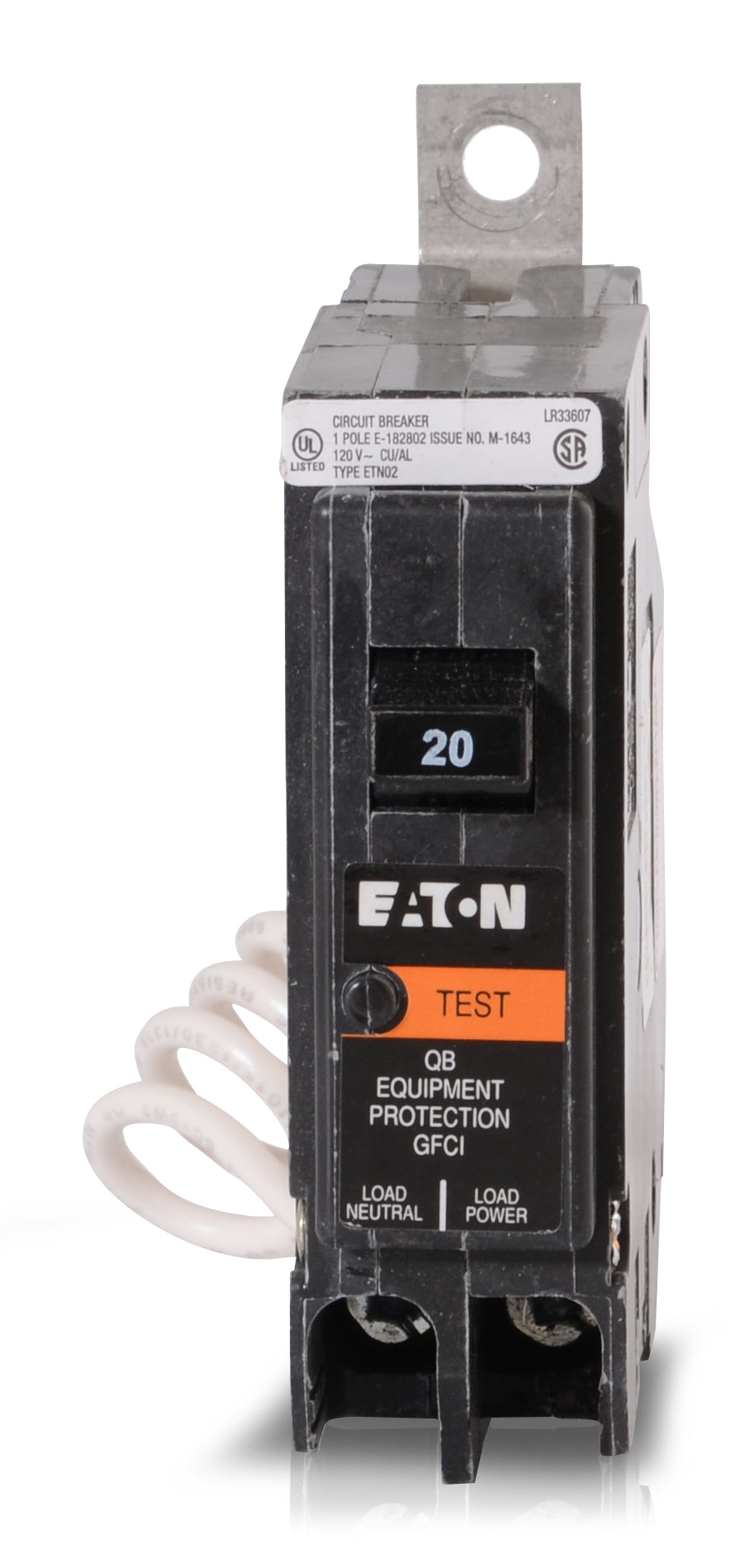

The Eaton QBH1020EP is a 1 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240V. It has an interrupting rating of 22kAIC at 120V. The QRH22B200 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 20 |
| Voltage | 120/240V |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 22kAIC at 120V |
| Frame Type | QBH |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 4 AWG |
| For Use With | Neutral and Existing Old Panels |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | QBH1020EP |
| Upc | 786679186039 |
