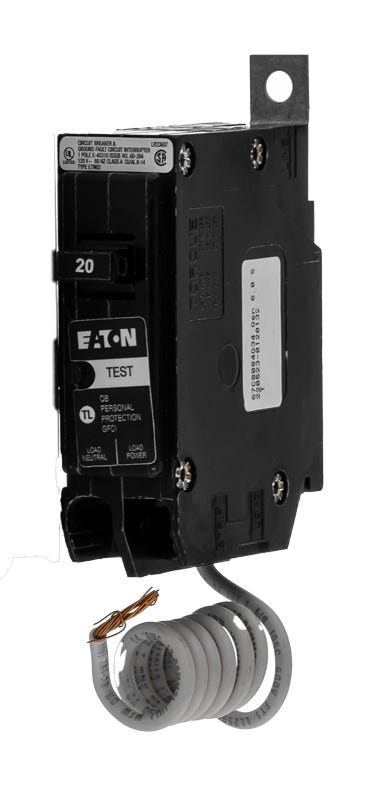

The Eaton QBH1020GF is a 1 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kA@120V. The QBH1020GF has a bolt-on connection type and includes LI - long time and instantaneous functions.
| Brand | Eaton |
|---|---|
| Series | QB |
| Amperage | 20 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 22kA@120V |
| Frame Type | QBH |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Load side lug |
| Wire Gauge | #14 to 4 AWG |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QBH1020GF |
| Upc | 786680222450 |
